GROUND TRUTH GLOVE (adding Flex sensors)

An upgrade to the hall-effect glove.

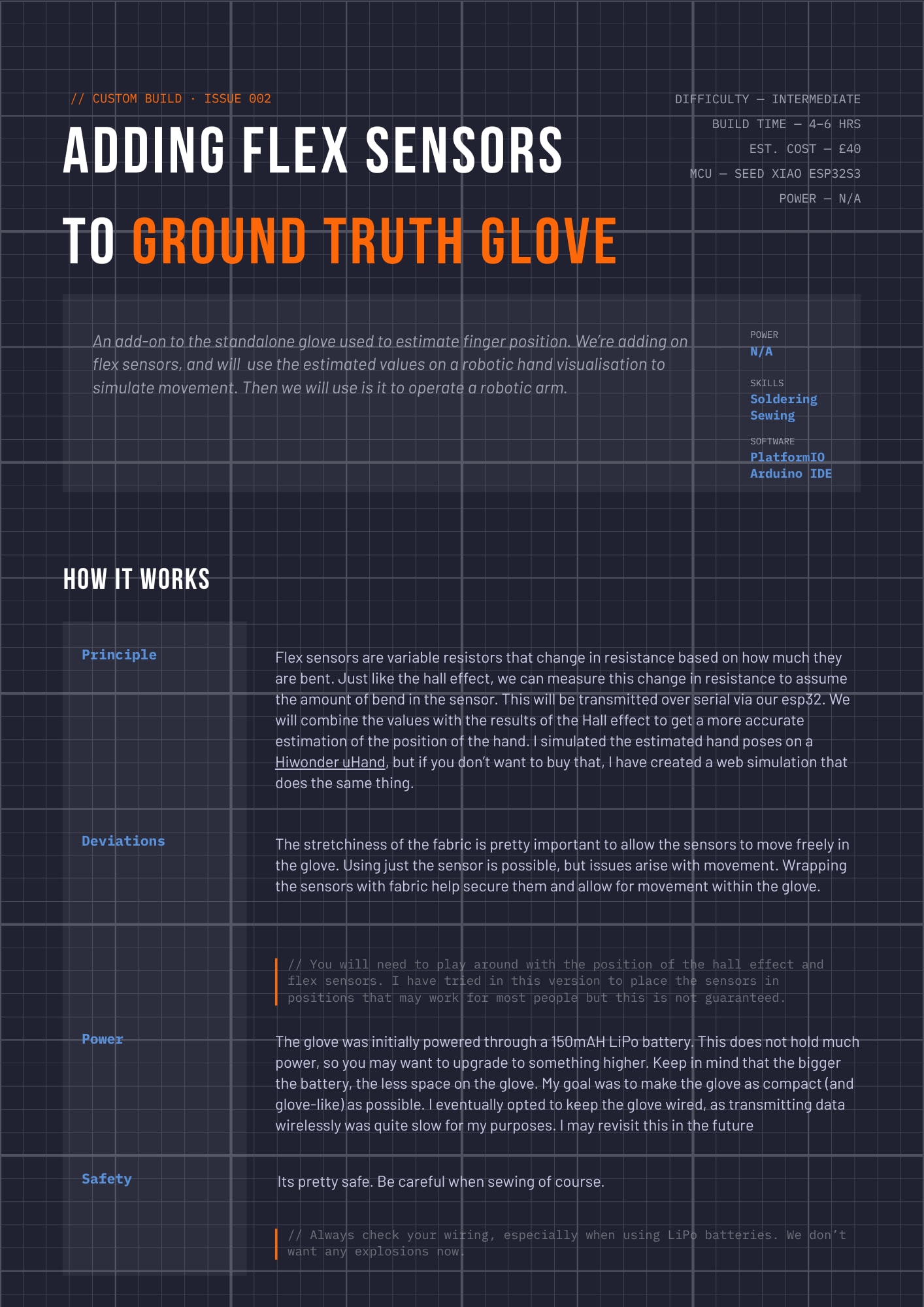

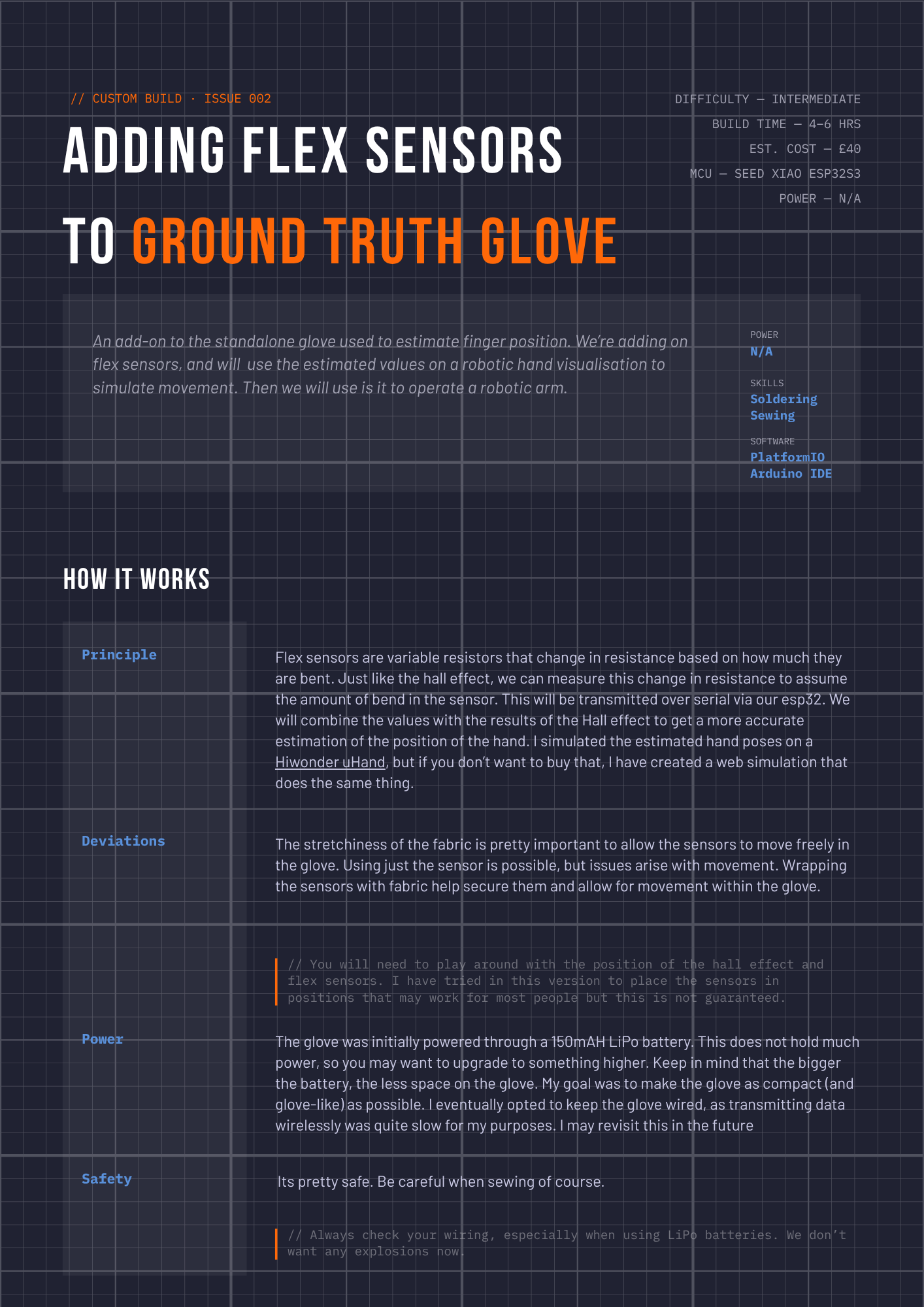

About

[COMING SOON]

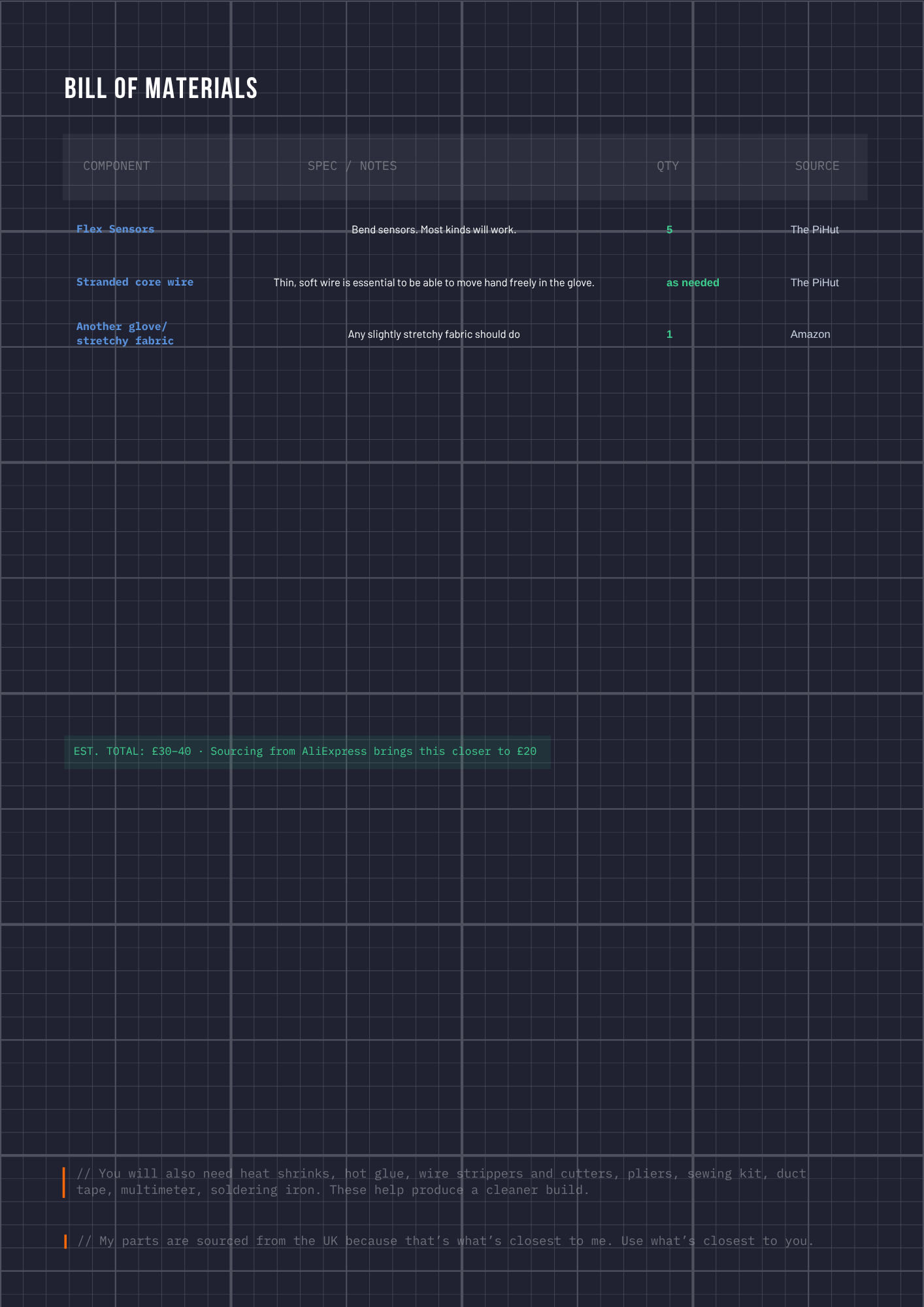

BOM

Prepare flex sensors

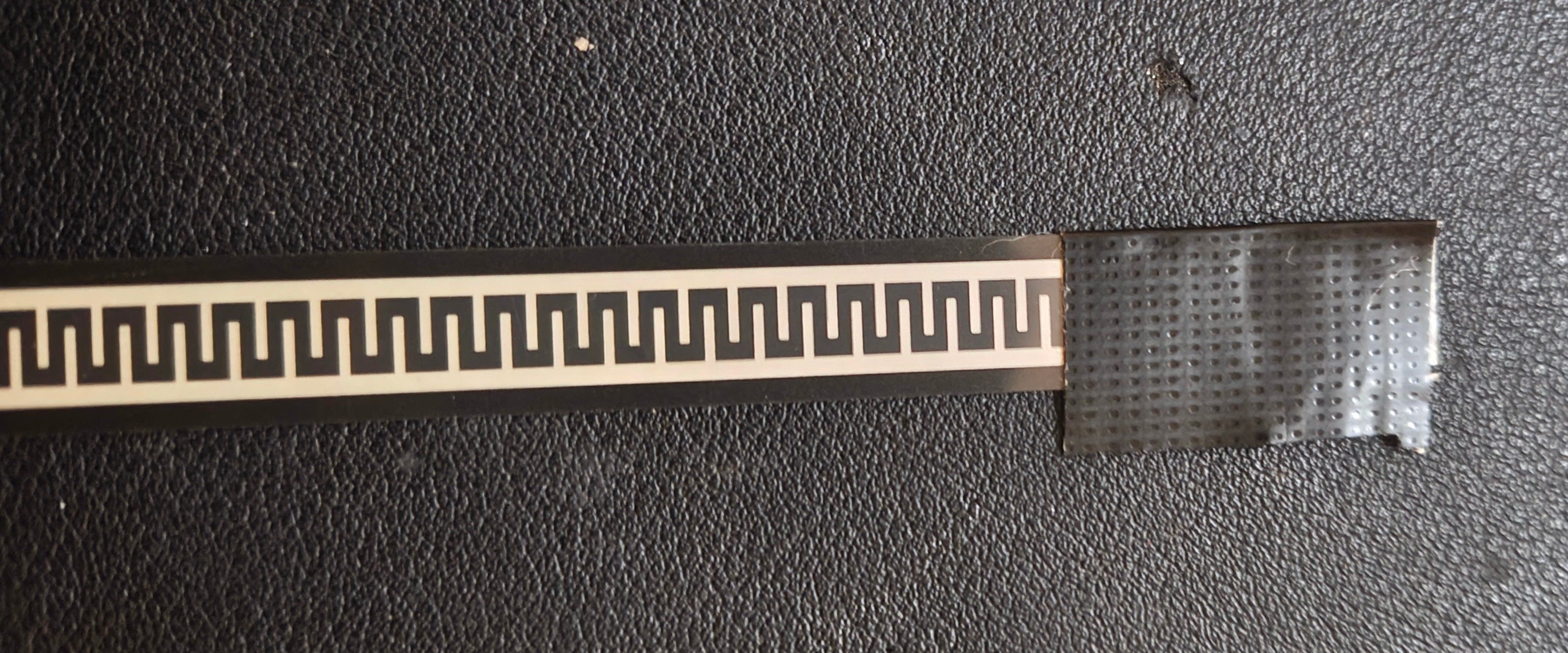

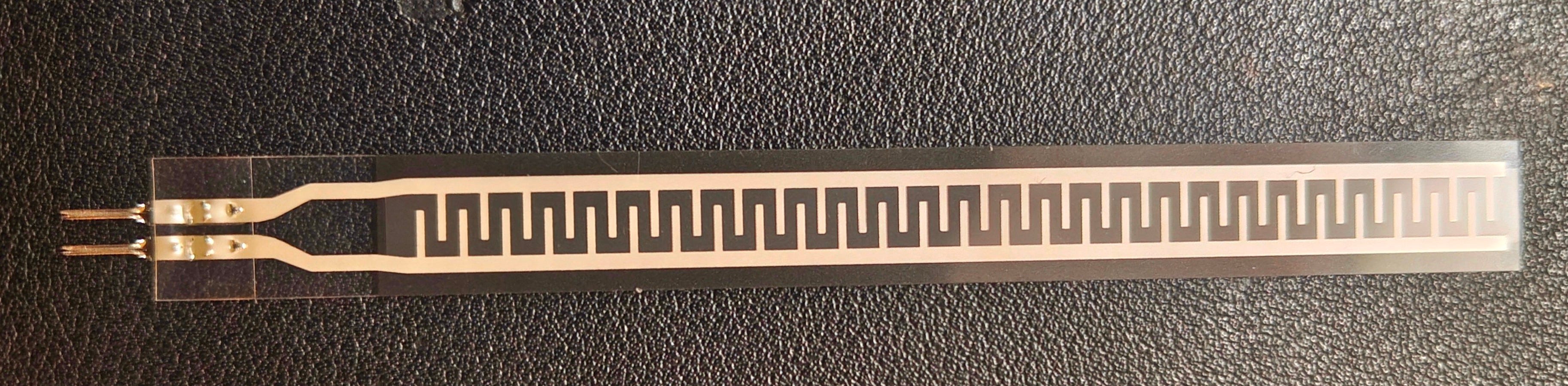

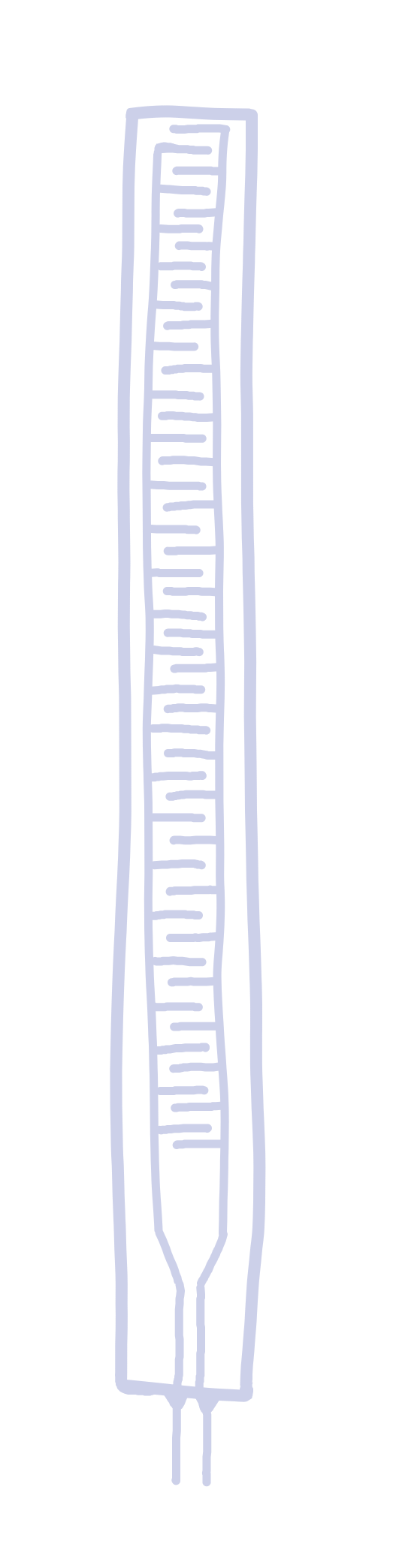

flex sensor

cut glove/ stretchy fabric

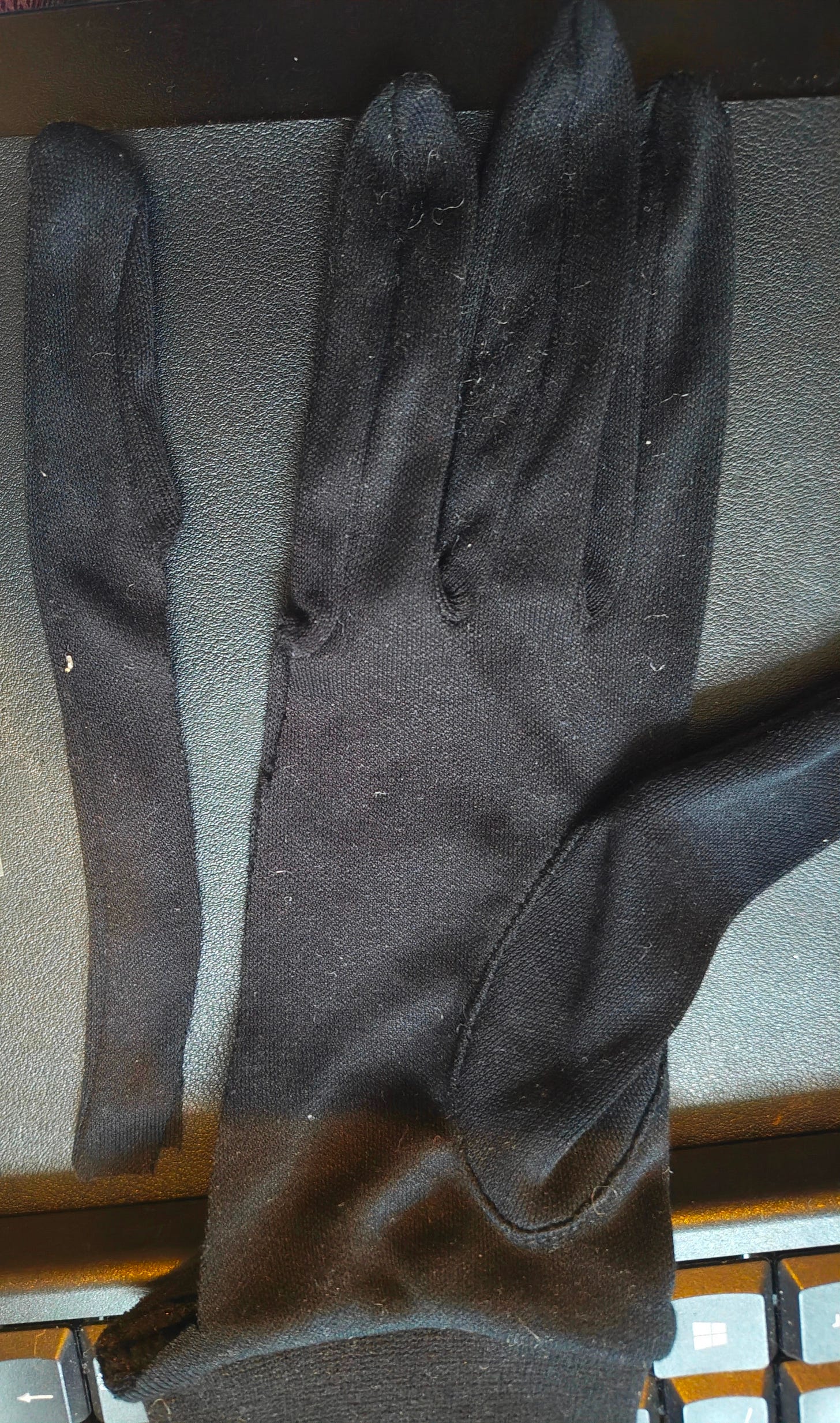

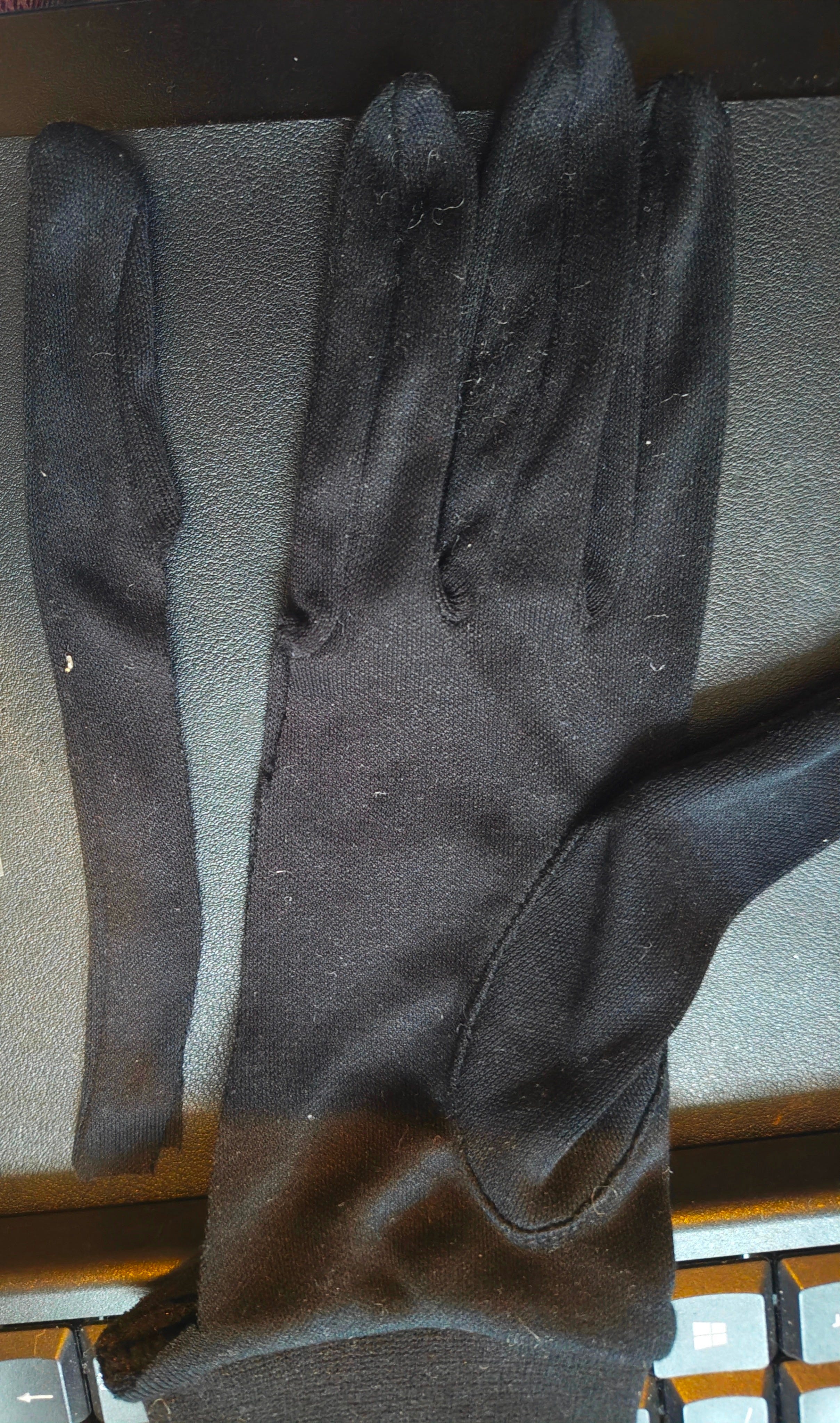

Grab the other glove you haven’t used yet (or any stretchy fabric) and cut out the fingers into strips, as long as they go. Keep these aside.

bend sensor

duct tape at the end, with some extra

fold it over

put into finger/ cloth

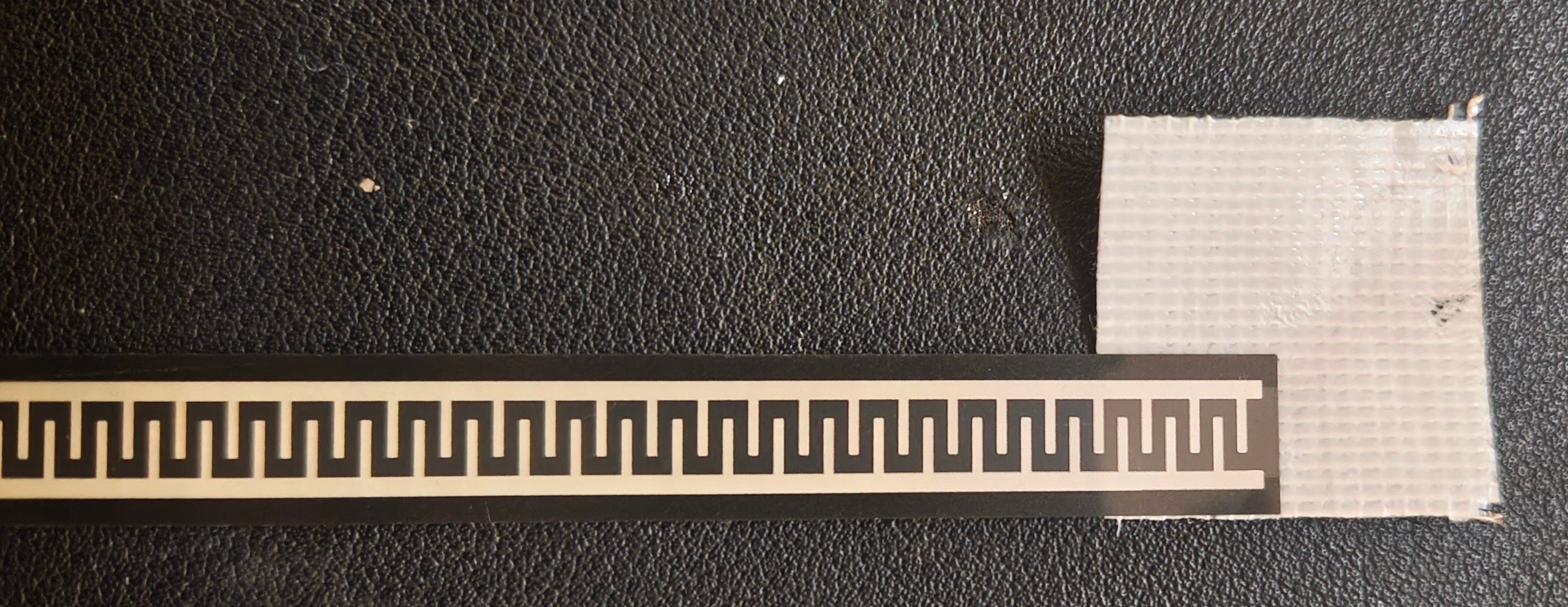

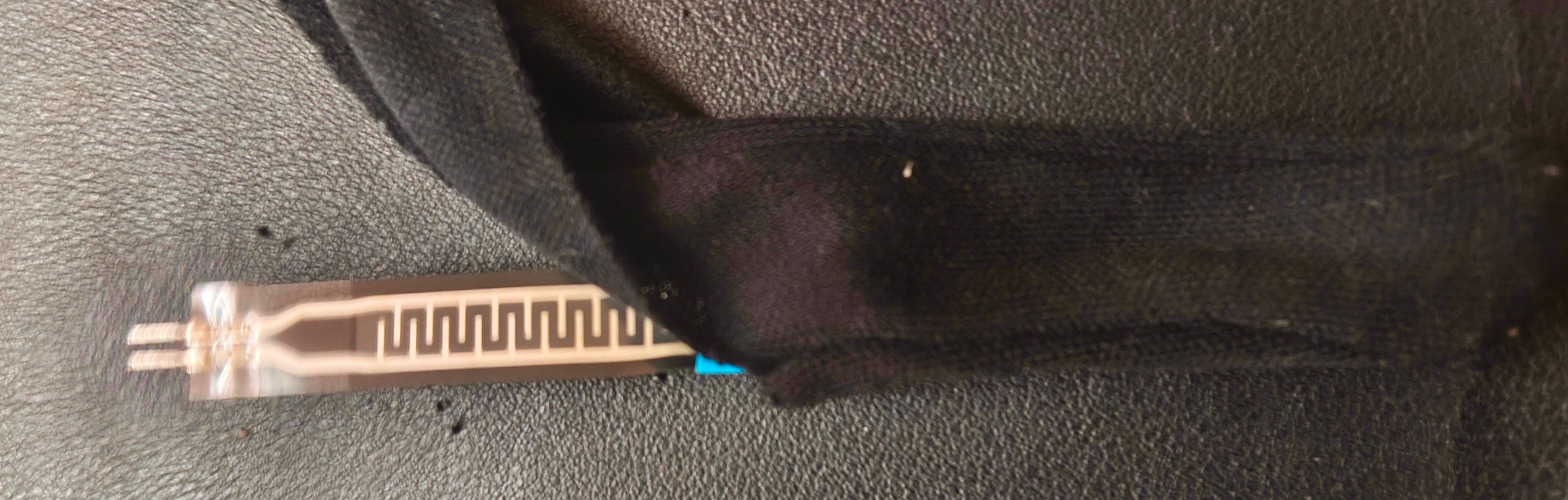

Then put the flex sensor about halfway on a piece of duct tape so there is a good amount of excess. Insert one of the flex sensors into a finger strip.

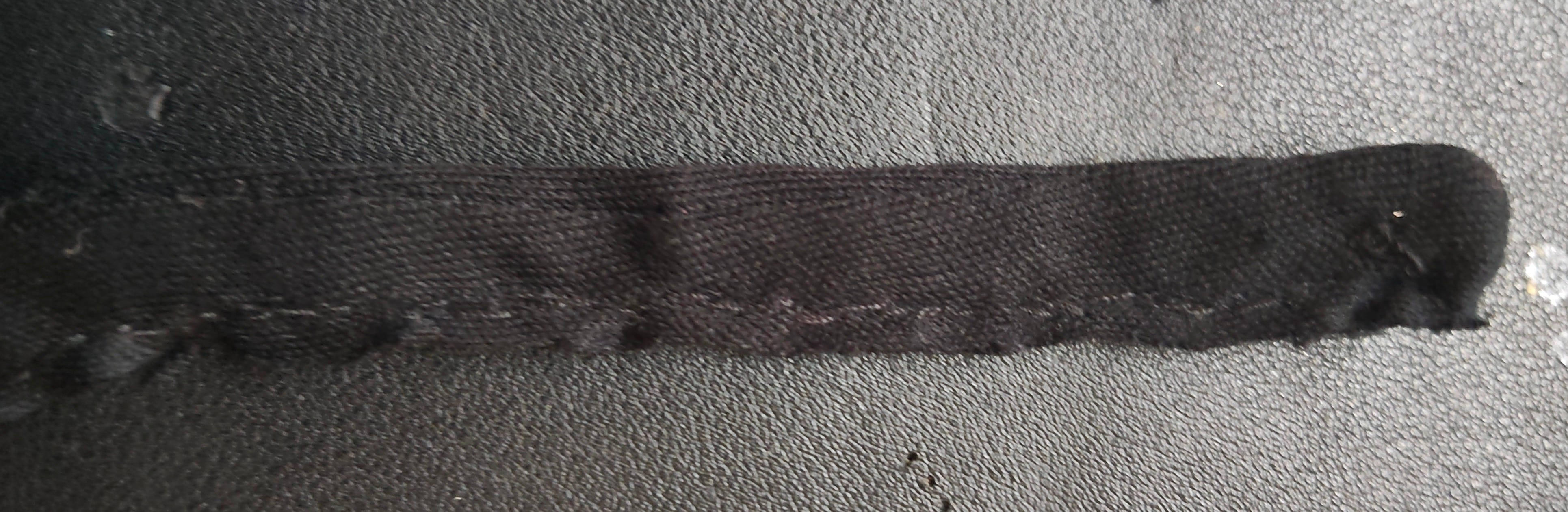

sew the end, through the duct tape. do not sew through the sensor

Sew the fingertip of it through the duct tape to keep it in place

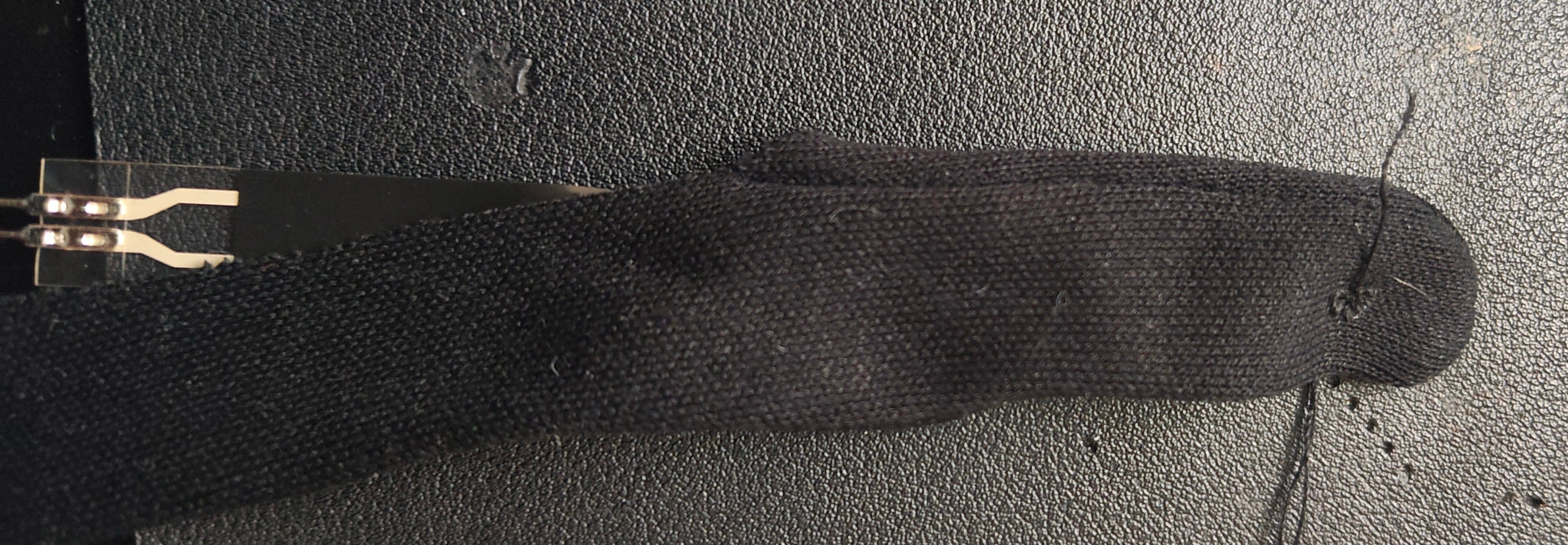

sew around the sensor

cut off any excess

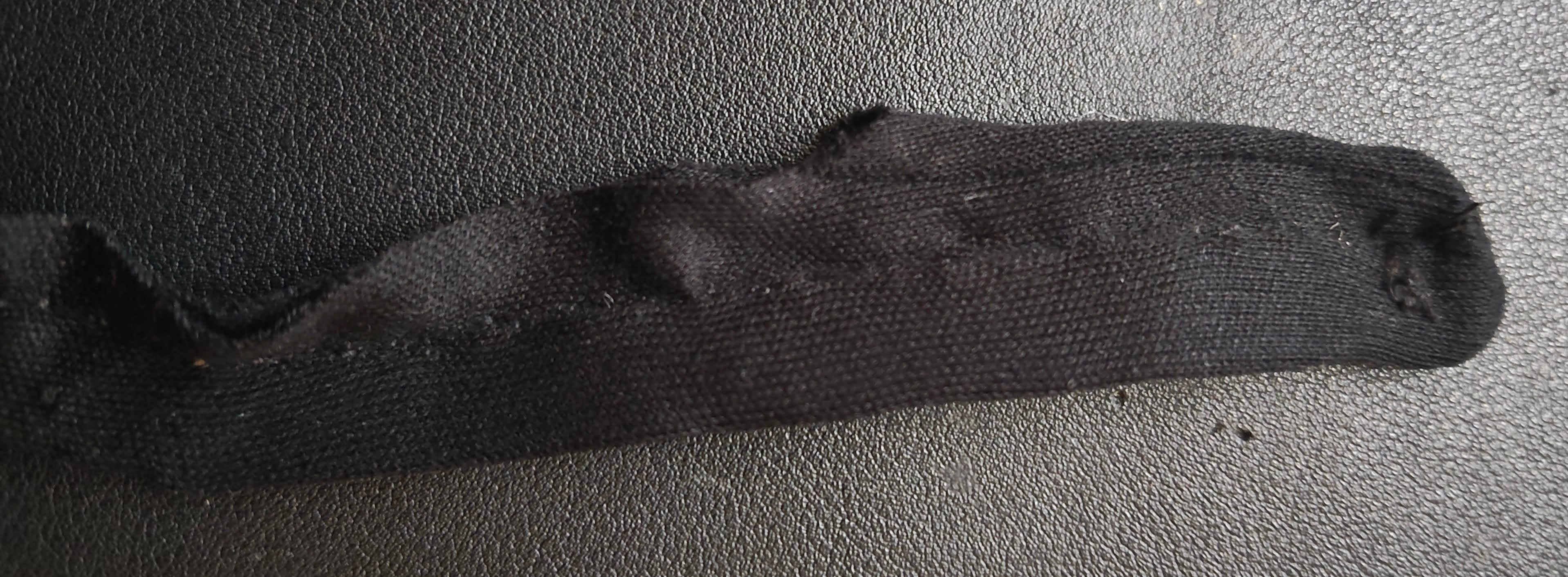

Sew around the flex sensor, ensuring it is not too tight as to not bend it. Cut off any excess.

push up cloth

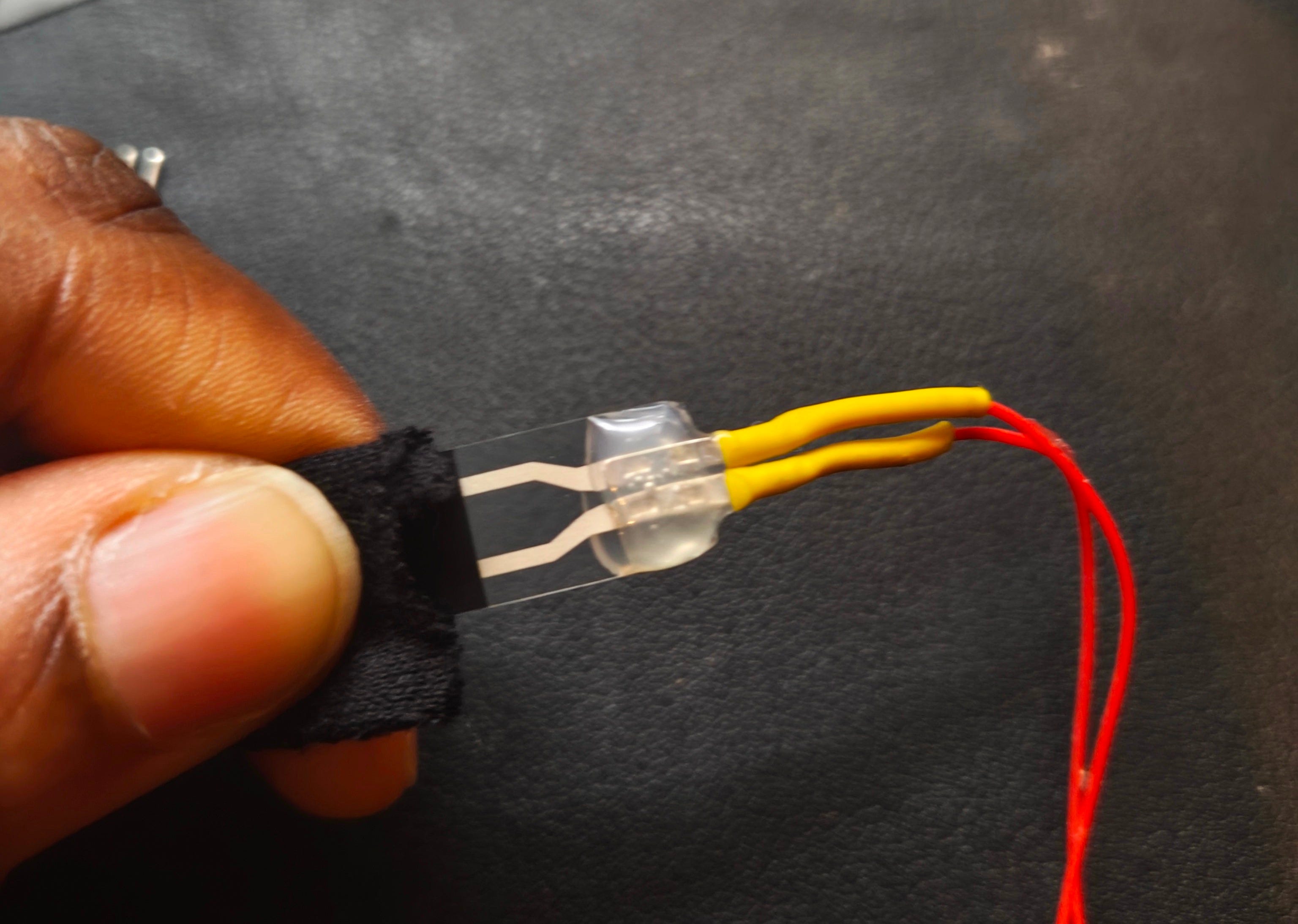

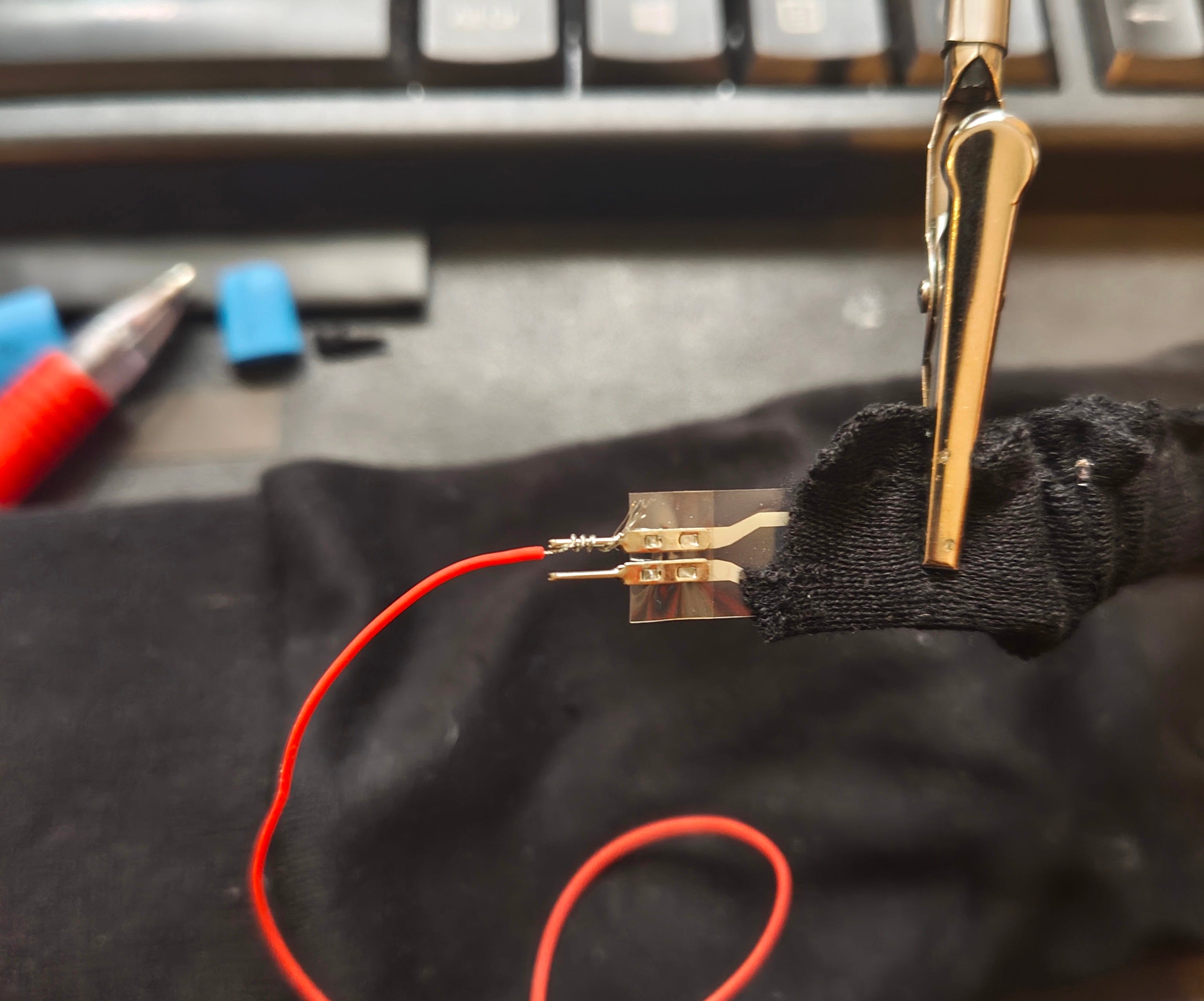

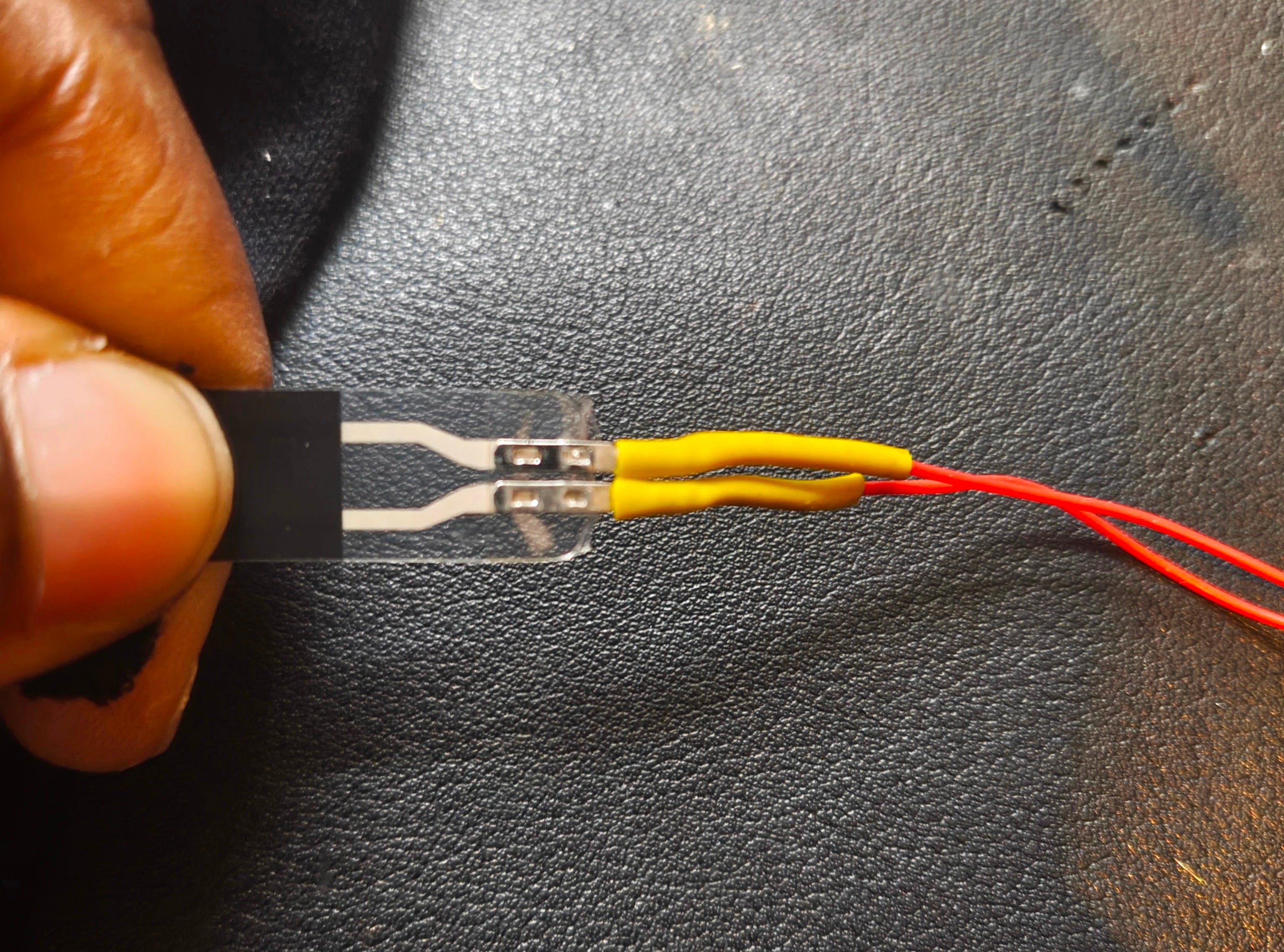

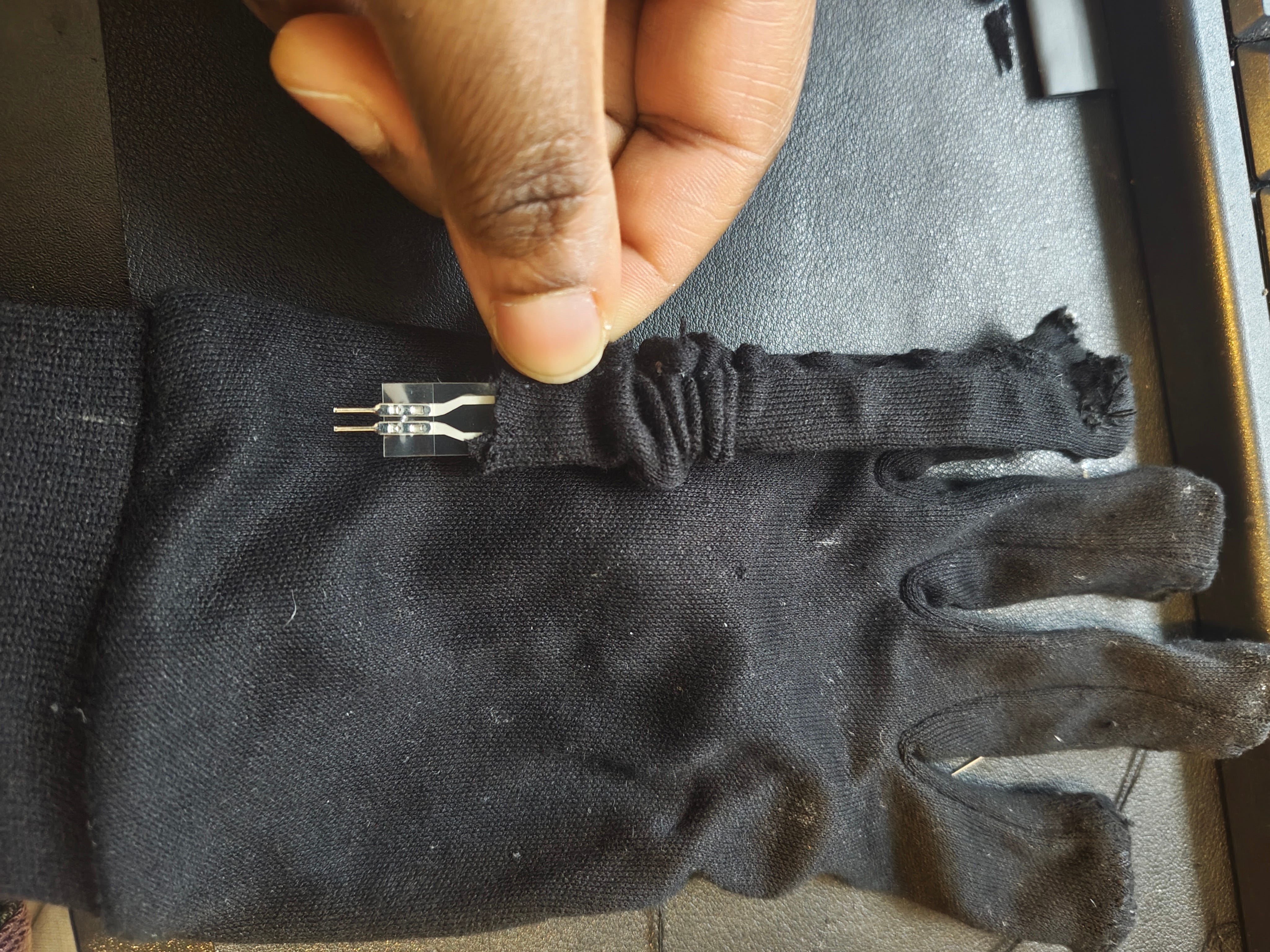

Pull back the cloth and solder some wire to the ends of the flex sensor, then heat shrink them.

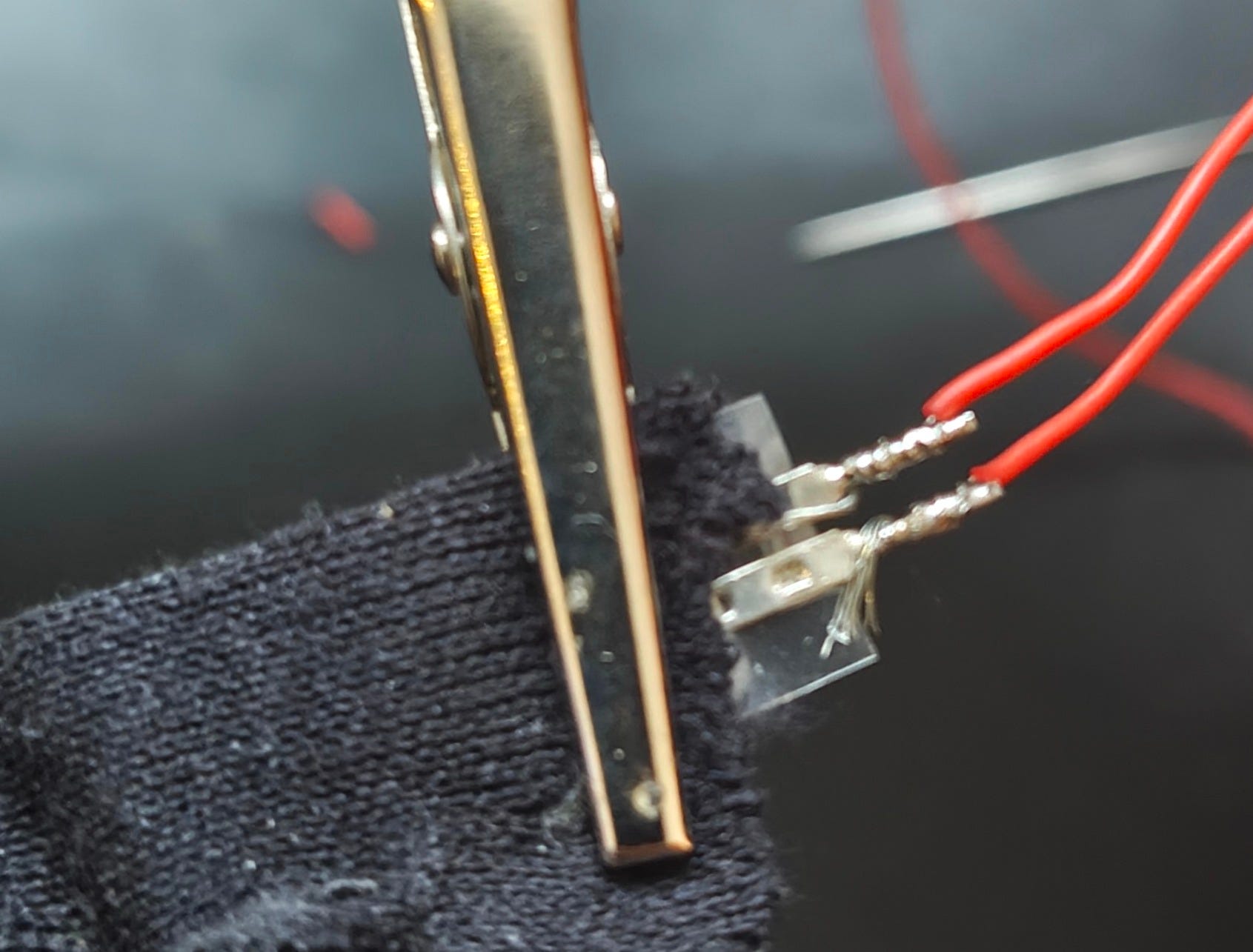

wrap wire around pin

solder both wires in place

heat shrink sensor

hot glue ends

—

NOTE

This bend sensors pins are bad, so I had to secure with hot glue. Probably better to use a different kind, these are what I had. Maybe they would be changed in the future.

—

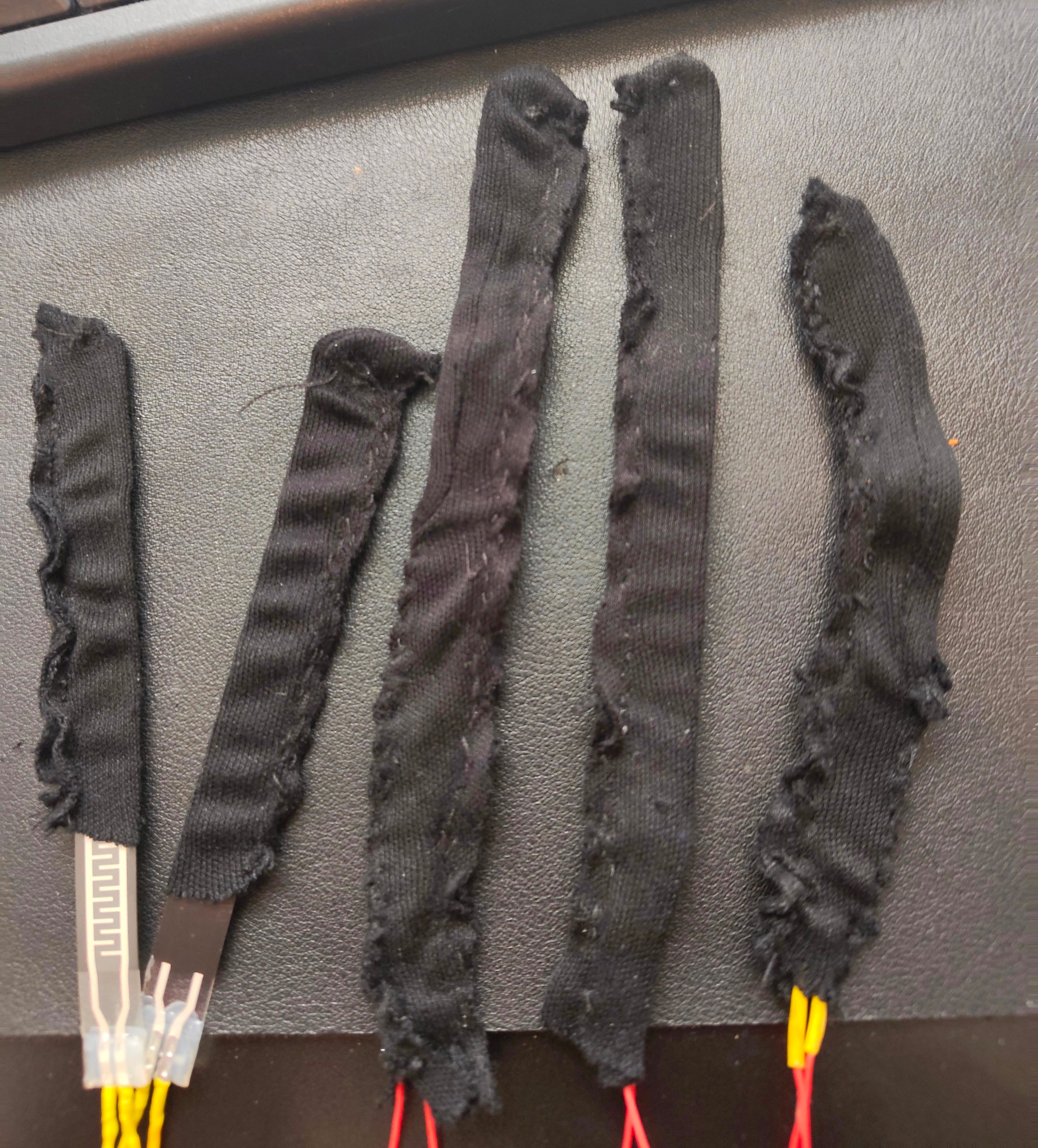

You can now pull the cloth back down if possible. Repeat for the remaining sensors.

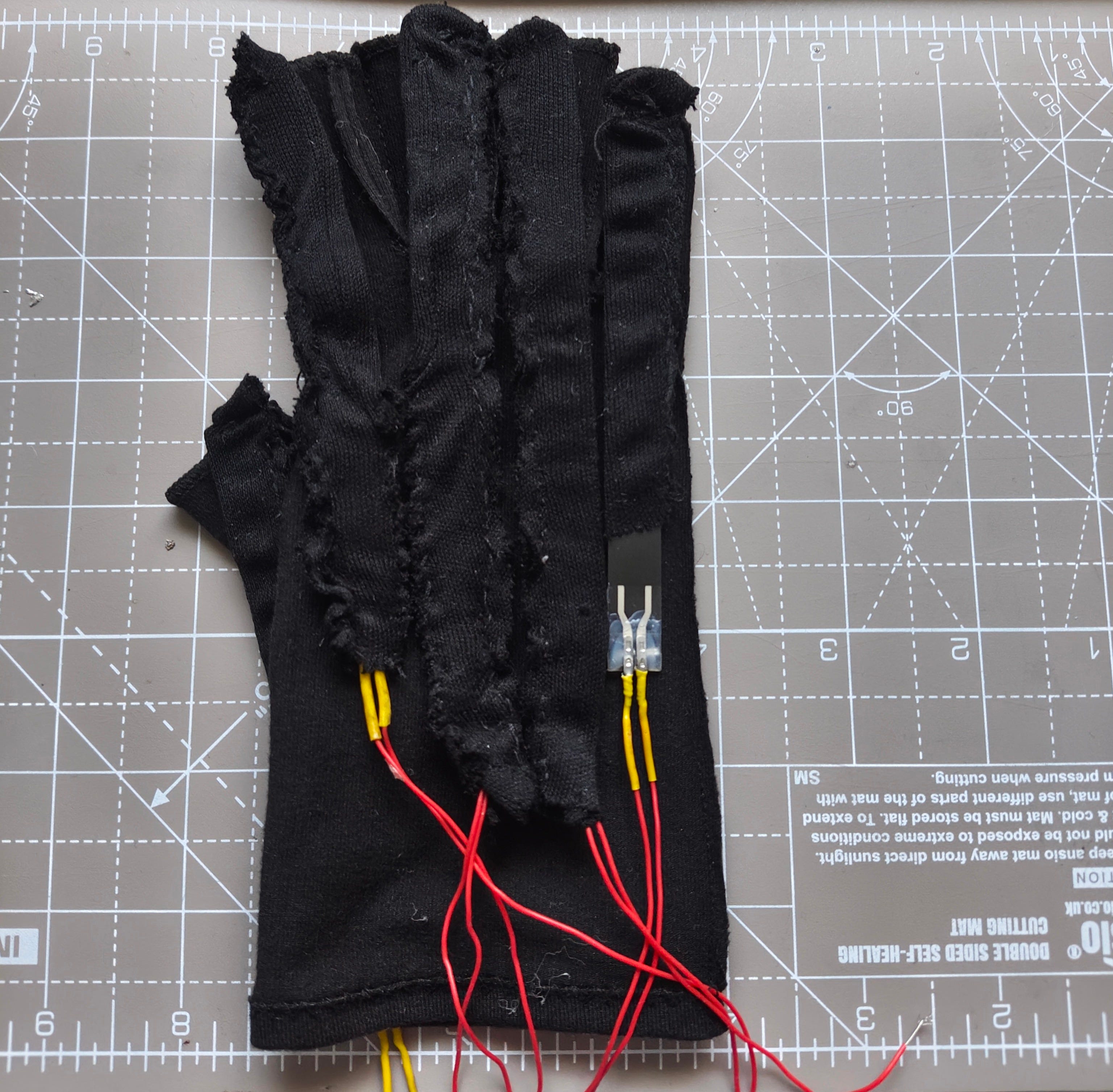

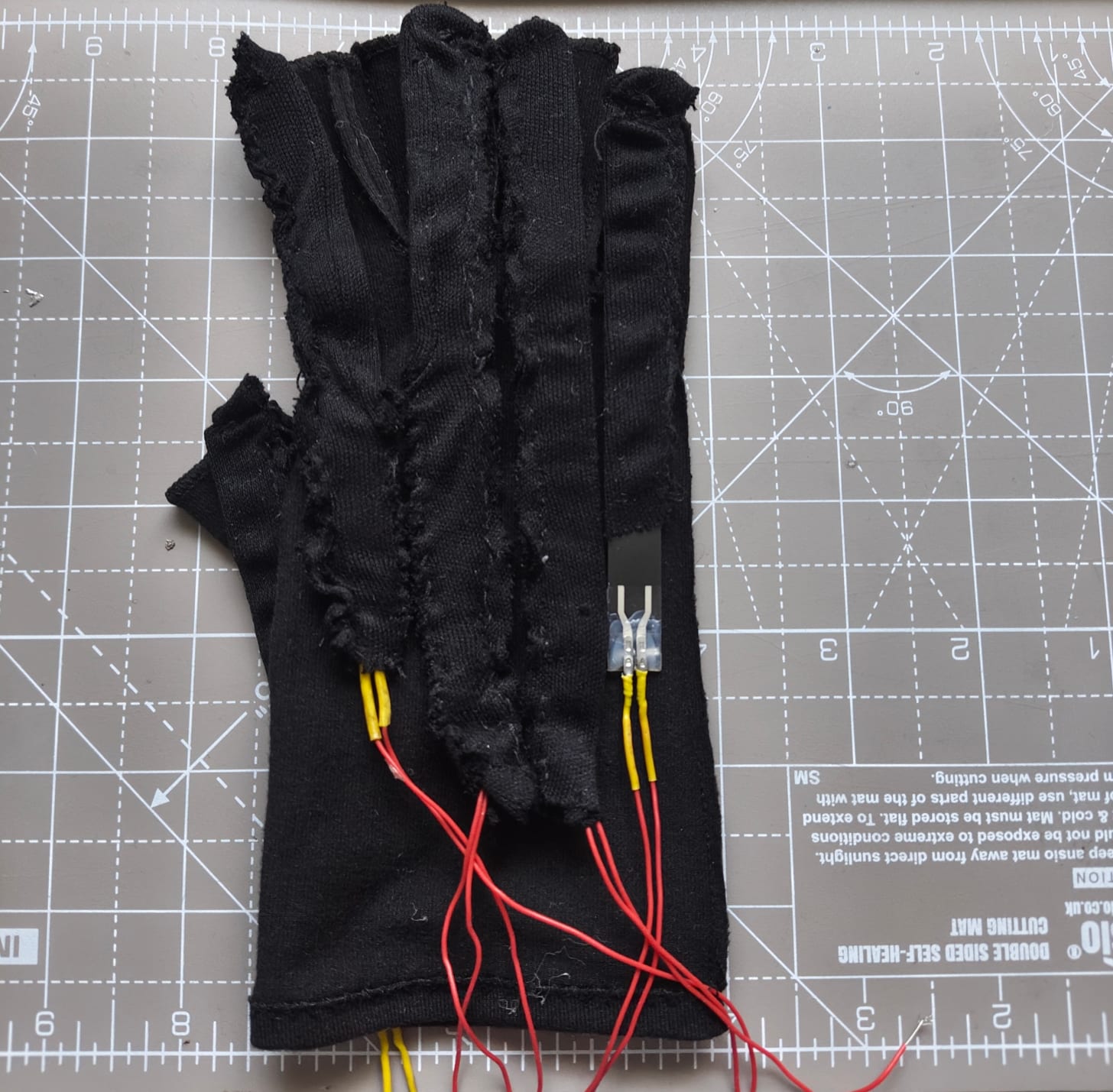

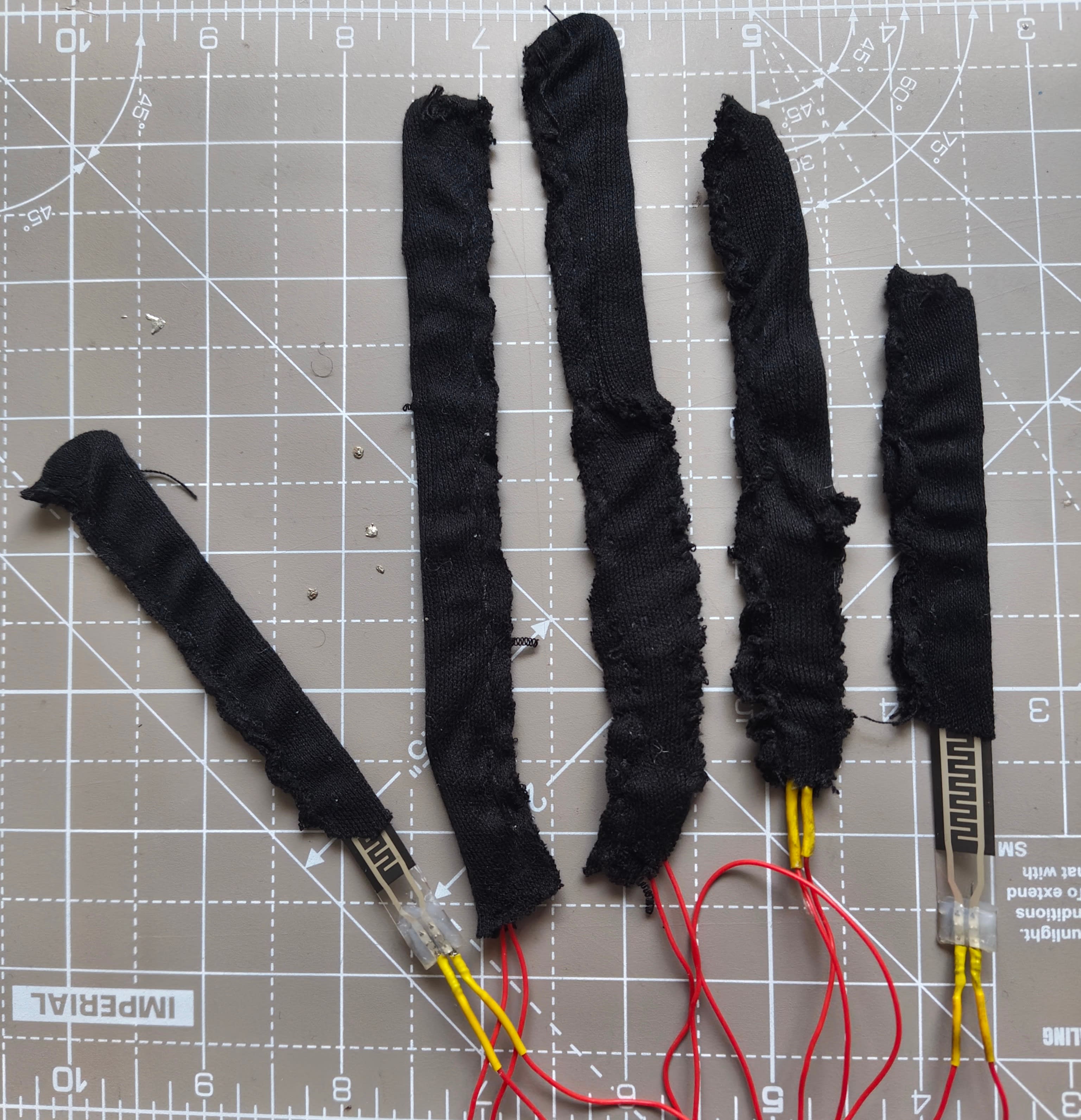

all sensors sewn up

Attach to Hall Effect Glove

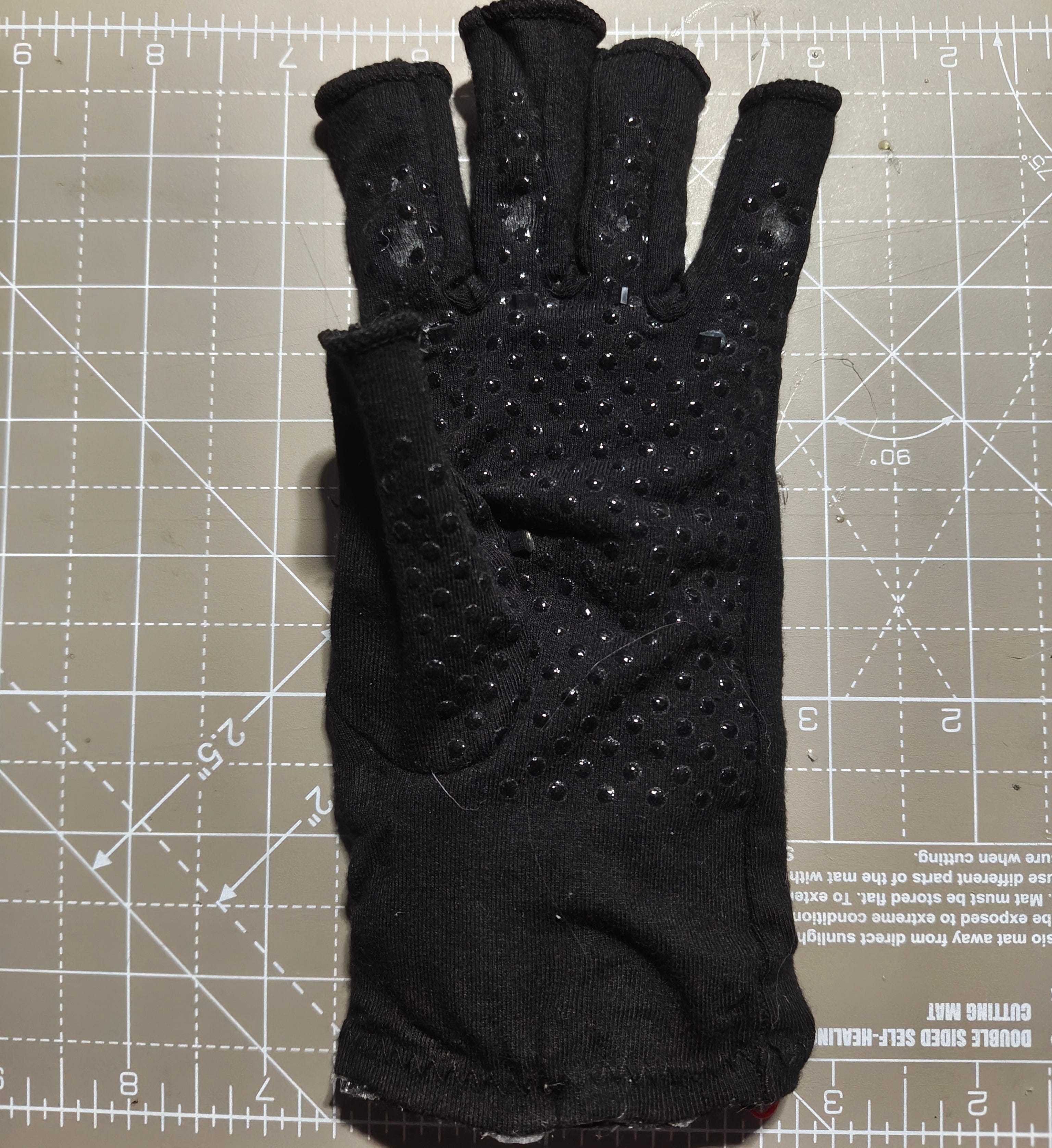

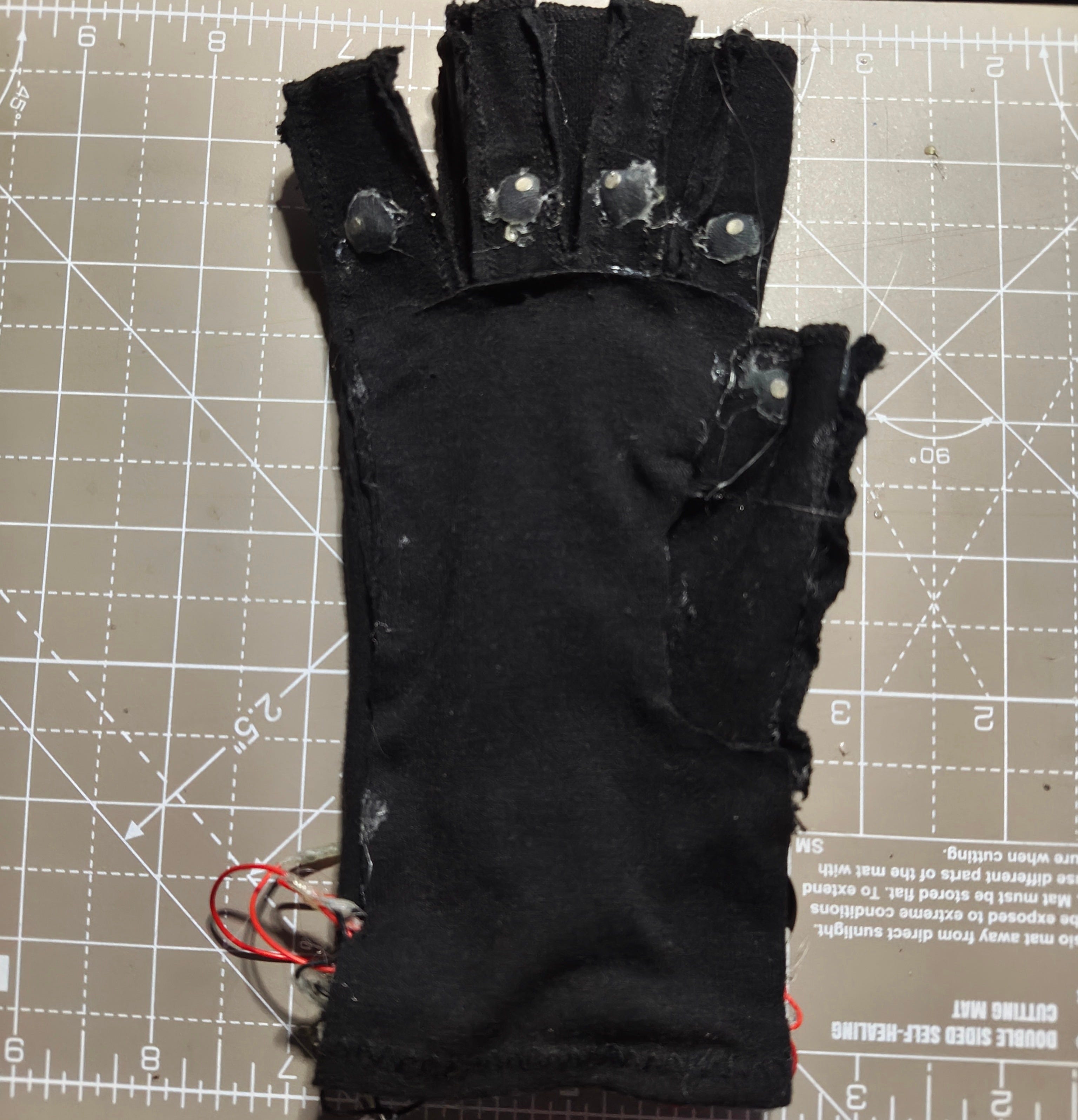

current state of hall effect glove

arrange flex sensors

arrange flex sensors on glove

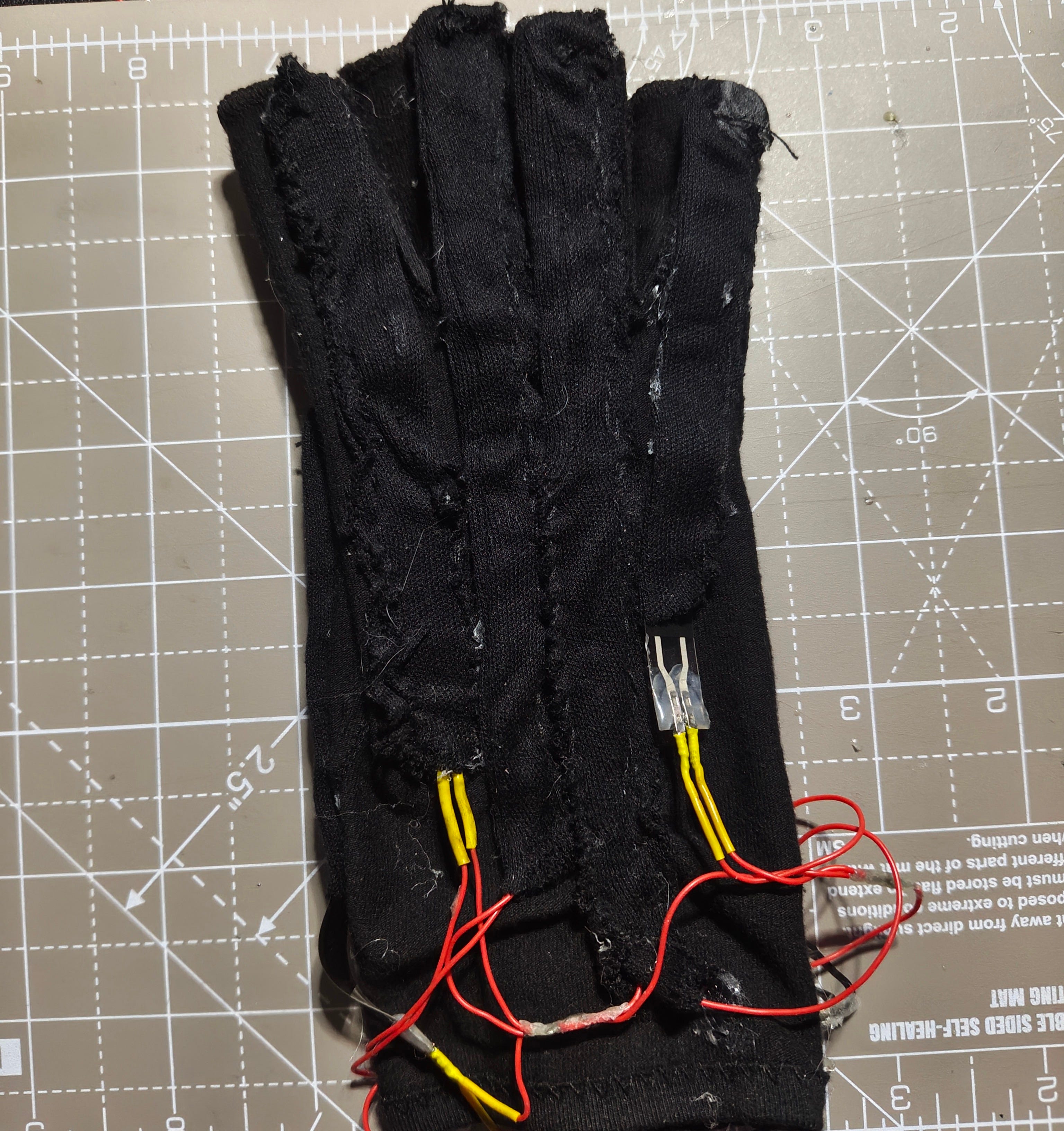

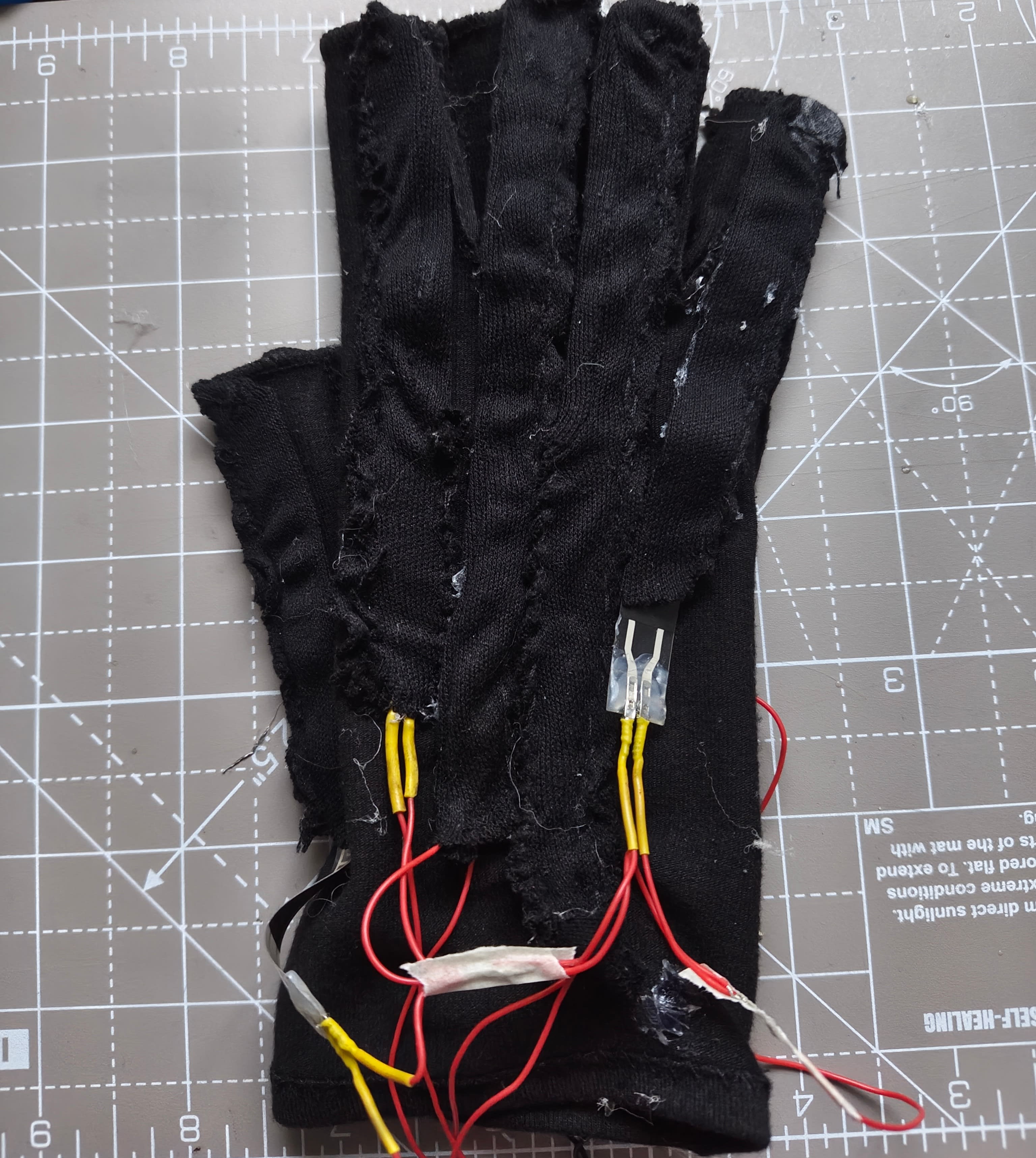

glue/ sew flex sensors onto the back of each finger

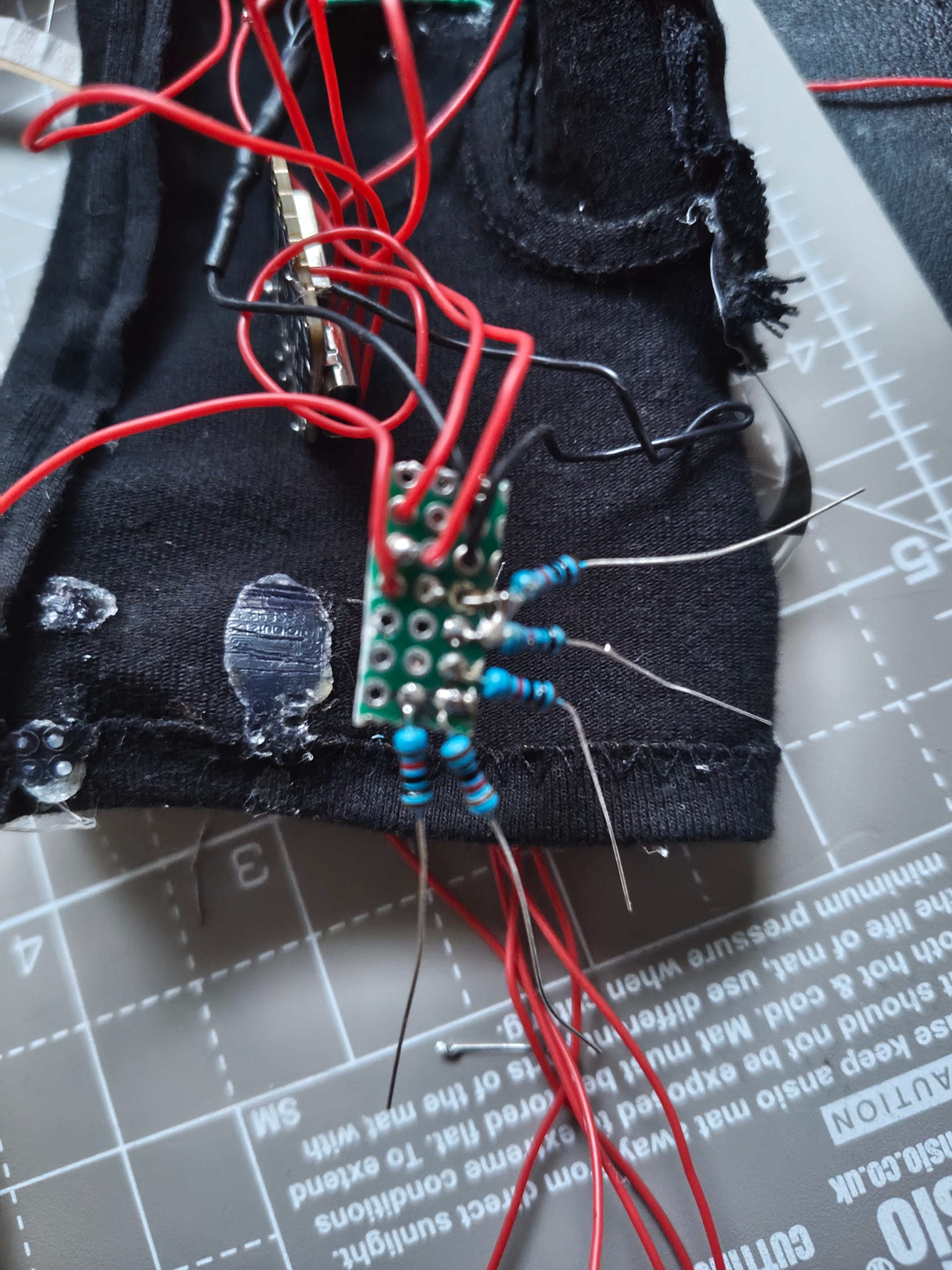

add a row of resistors going to ground

connect the VCC together

grab OUTPUT and connect to MCU

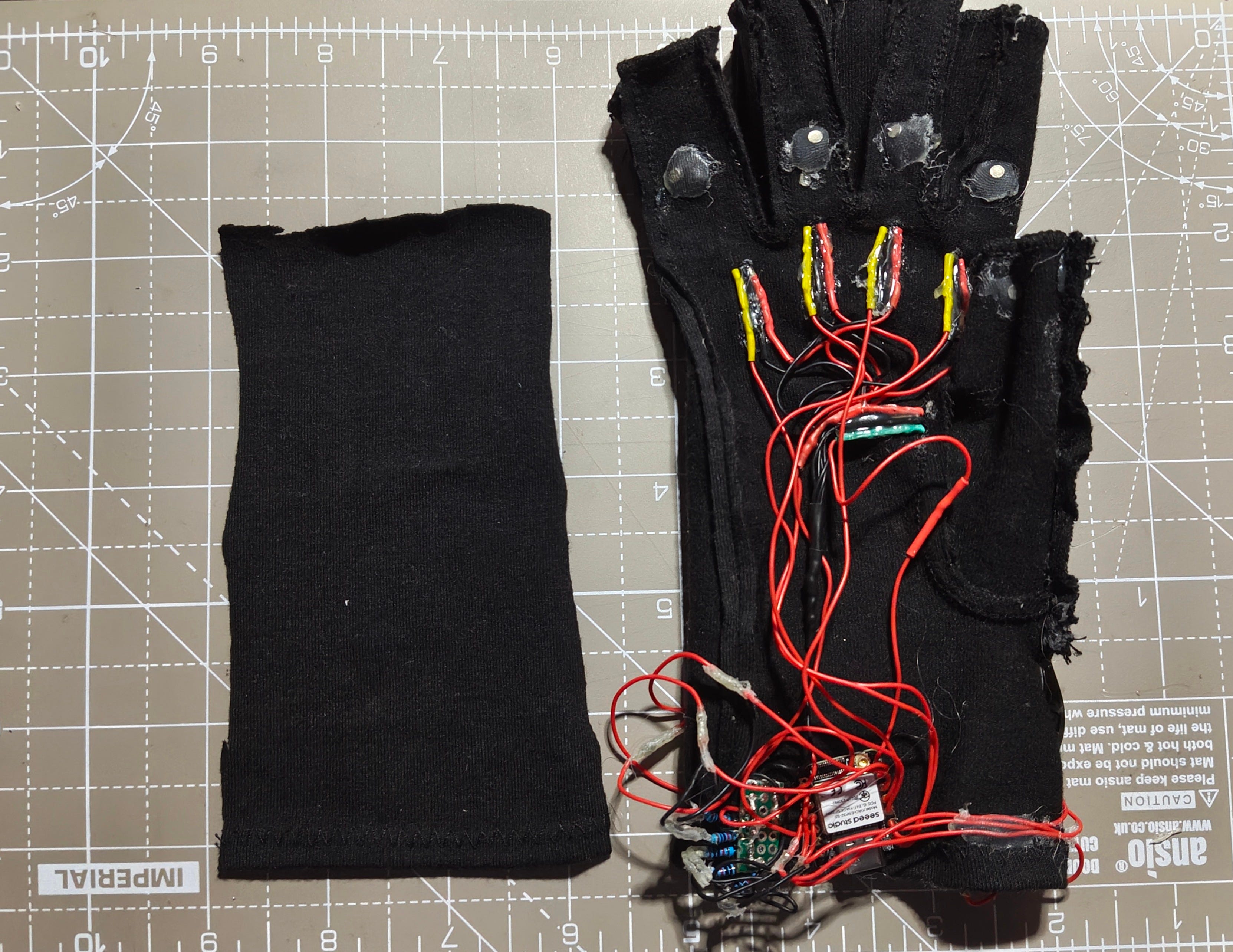

Cut a piece of glove and glue to cover wires

cut any excess

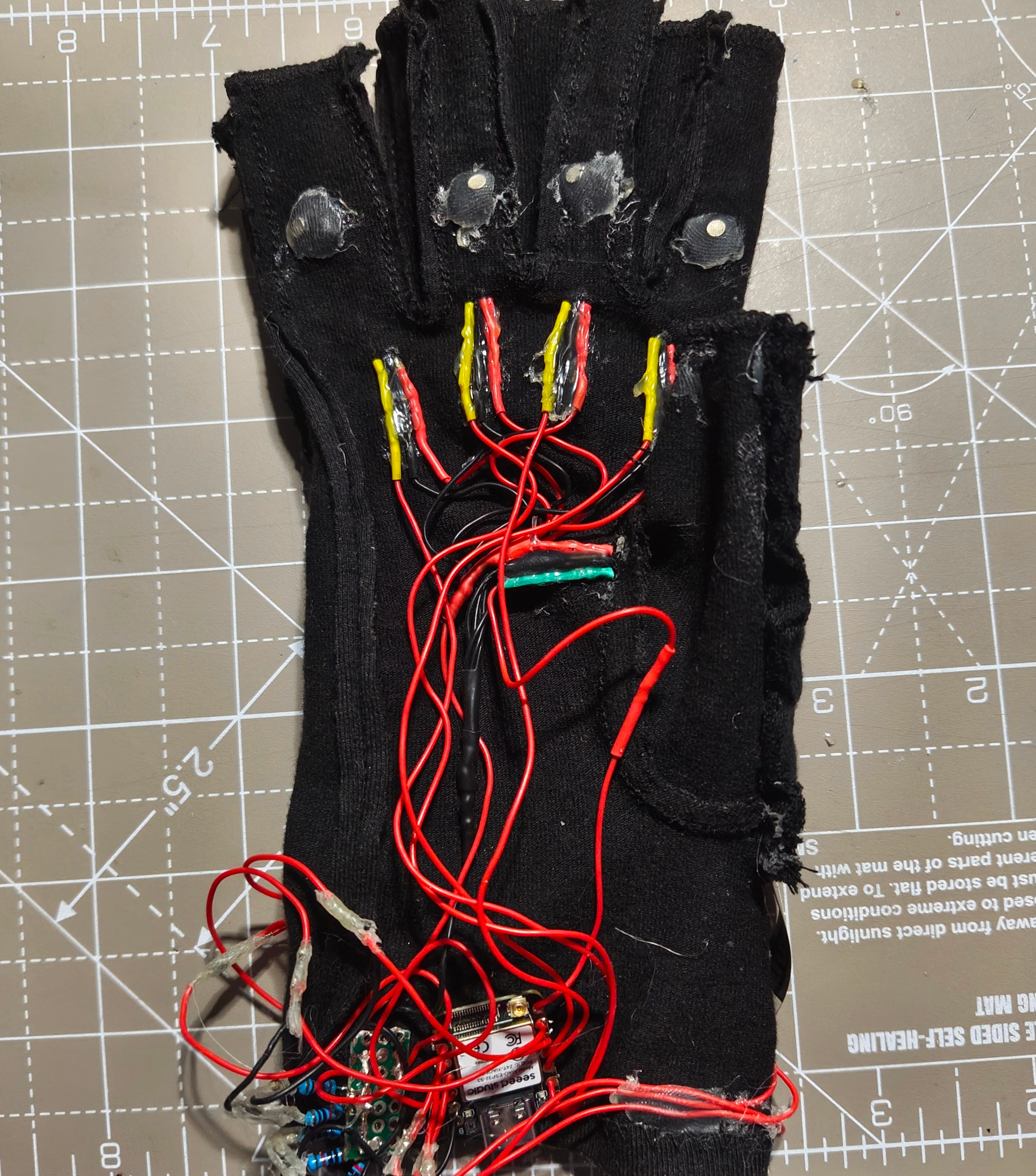

finished glove - front

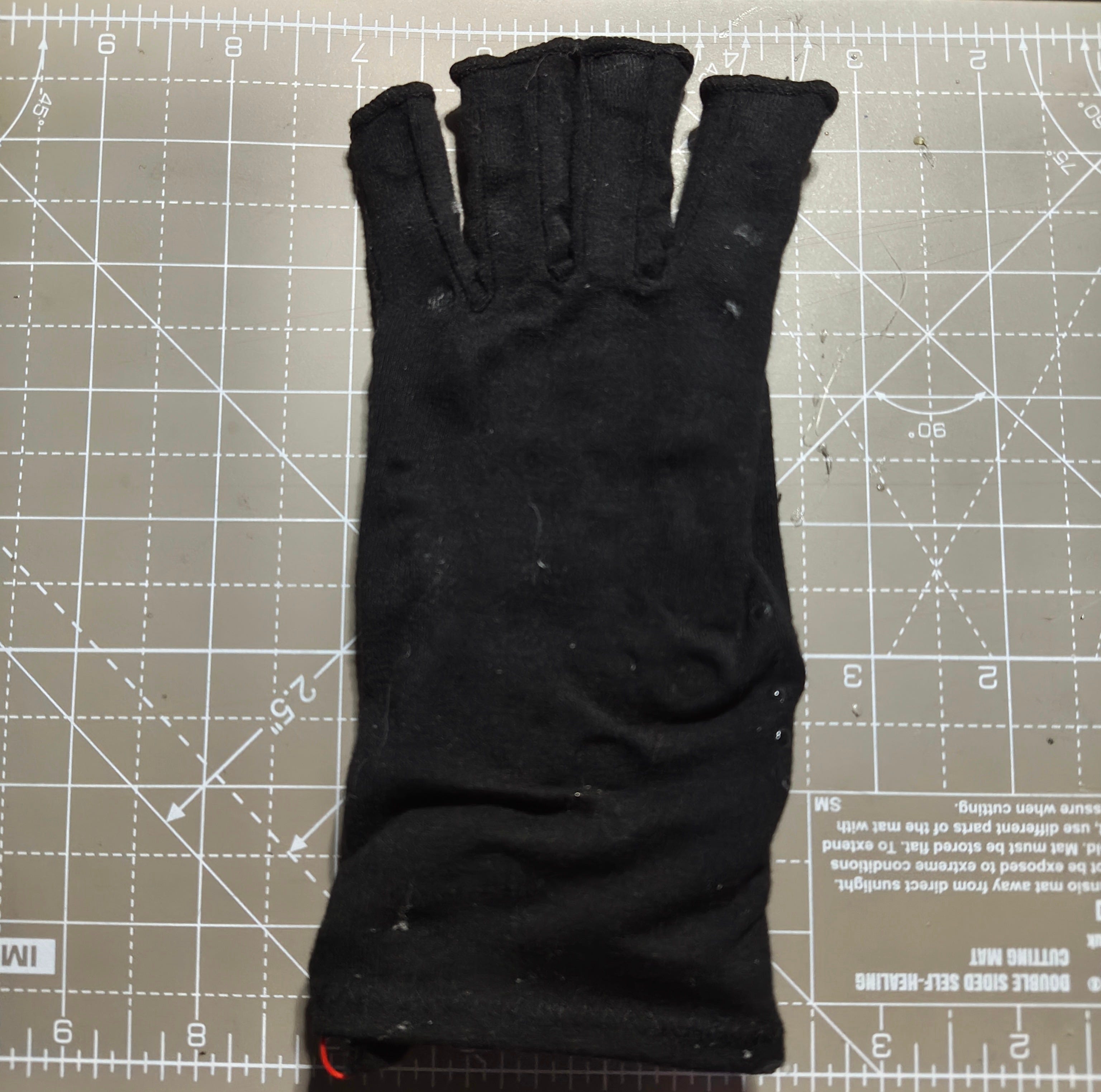

finished glove - back

Wiring

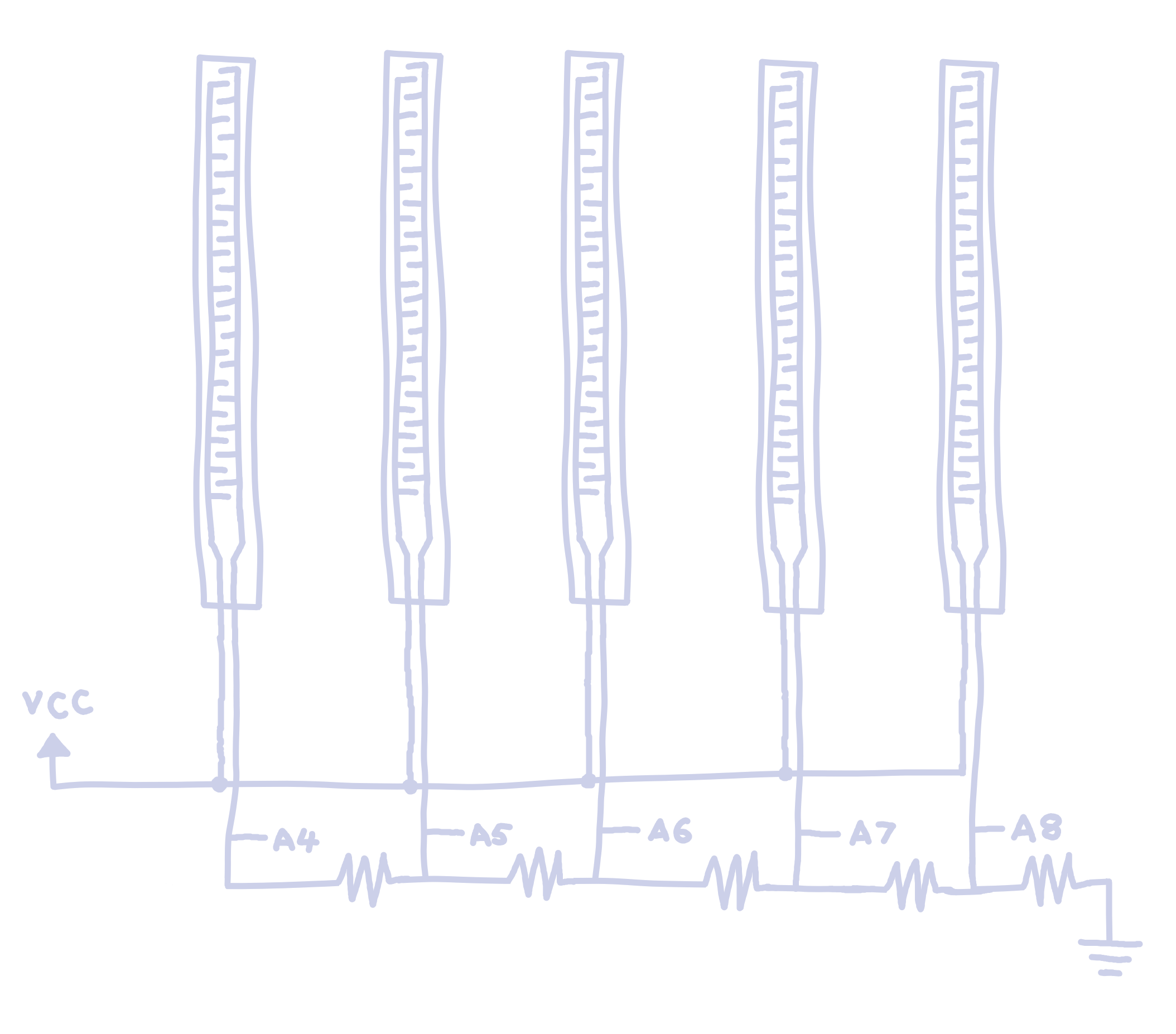

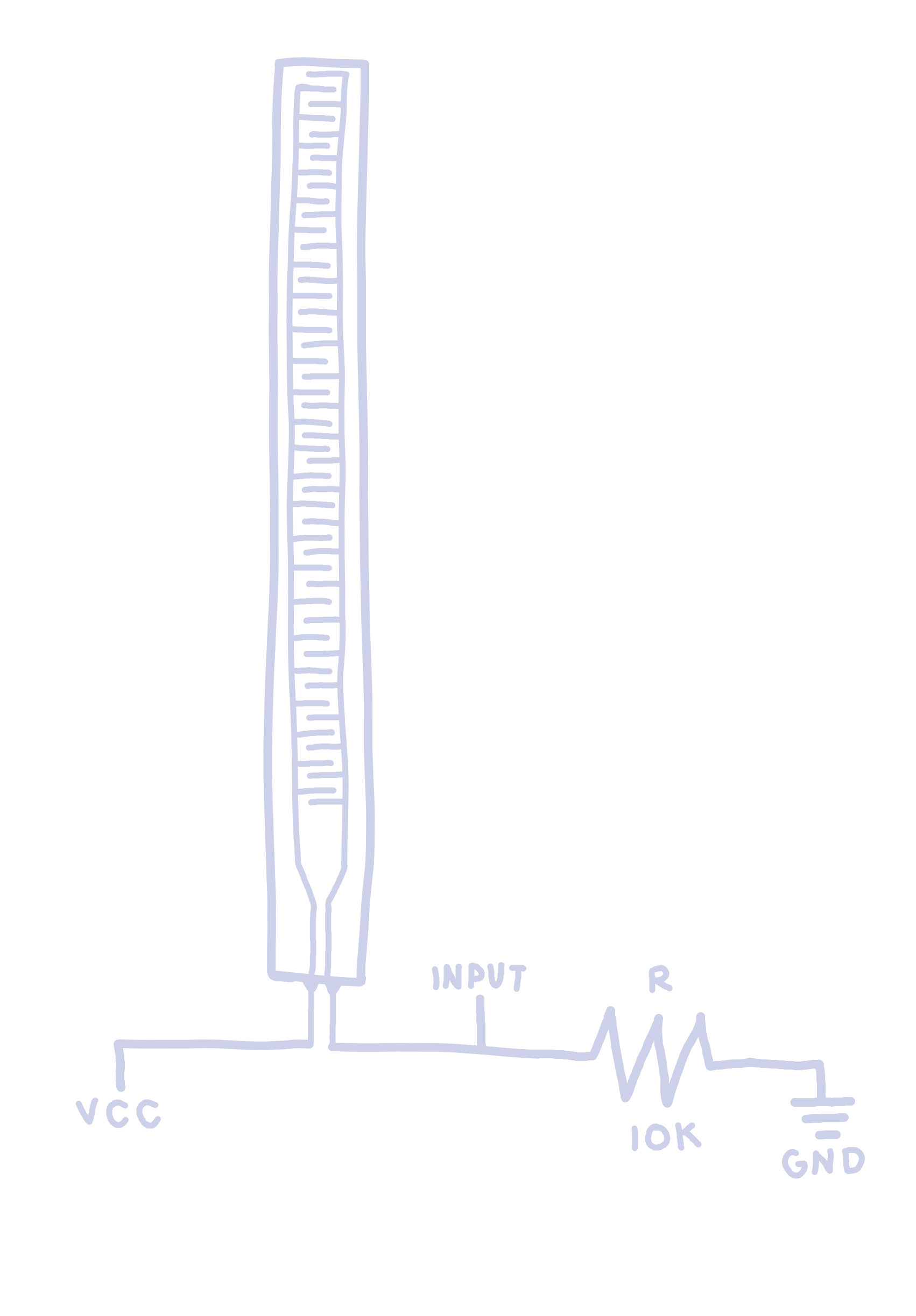

flex sensor wiring

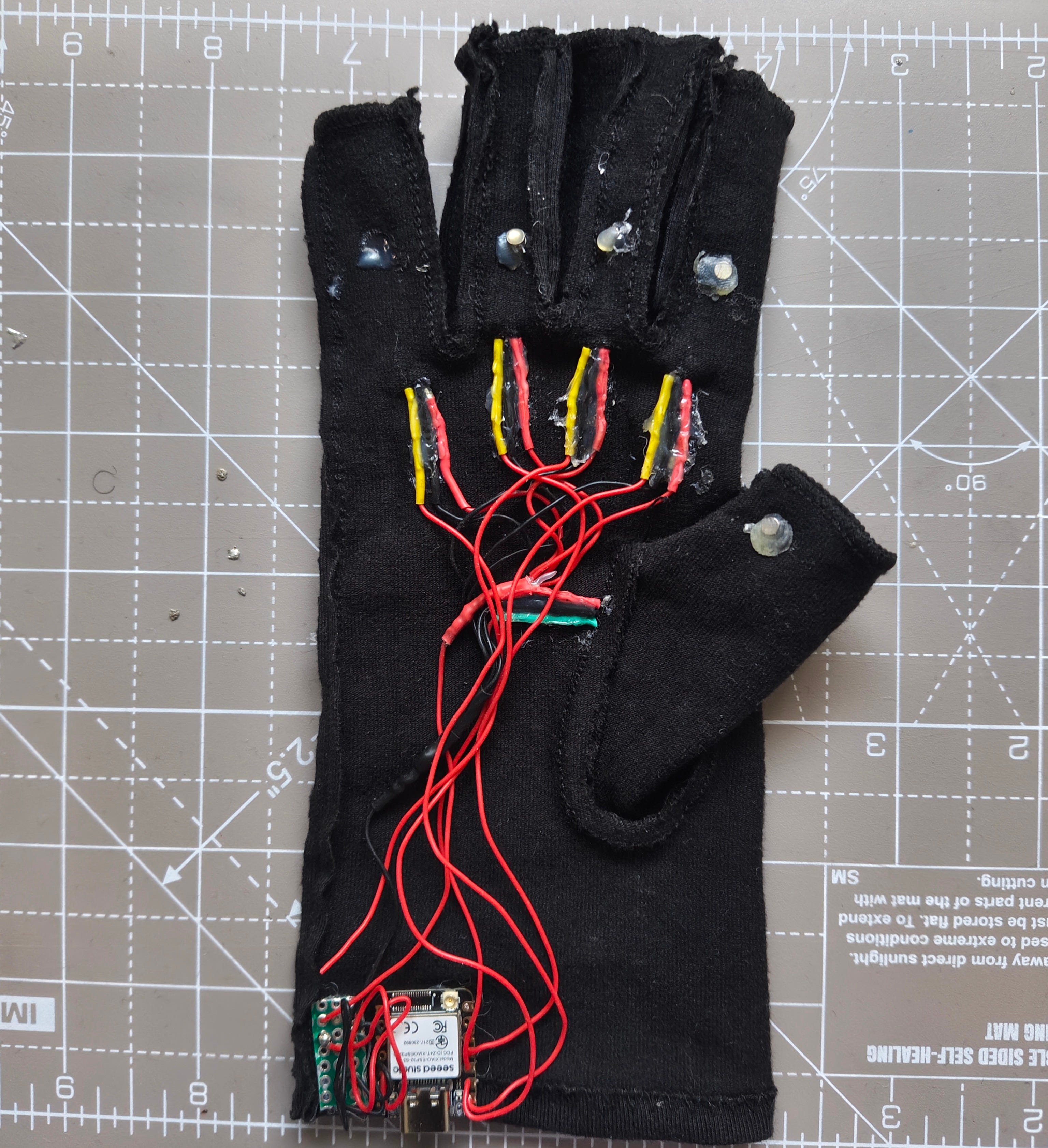

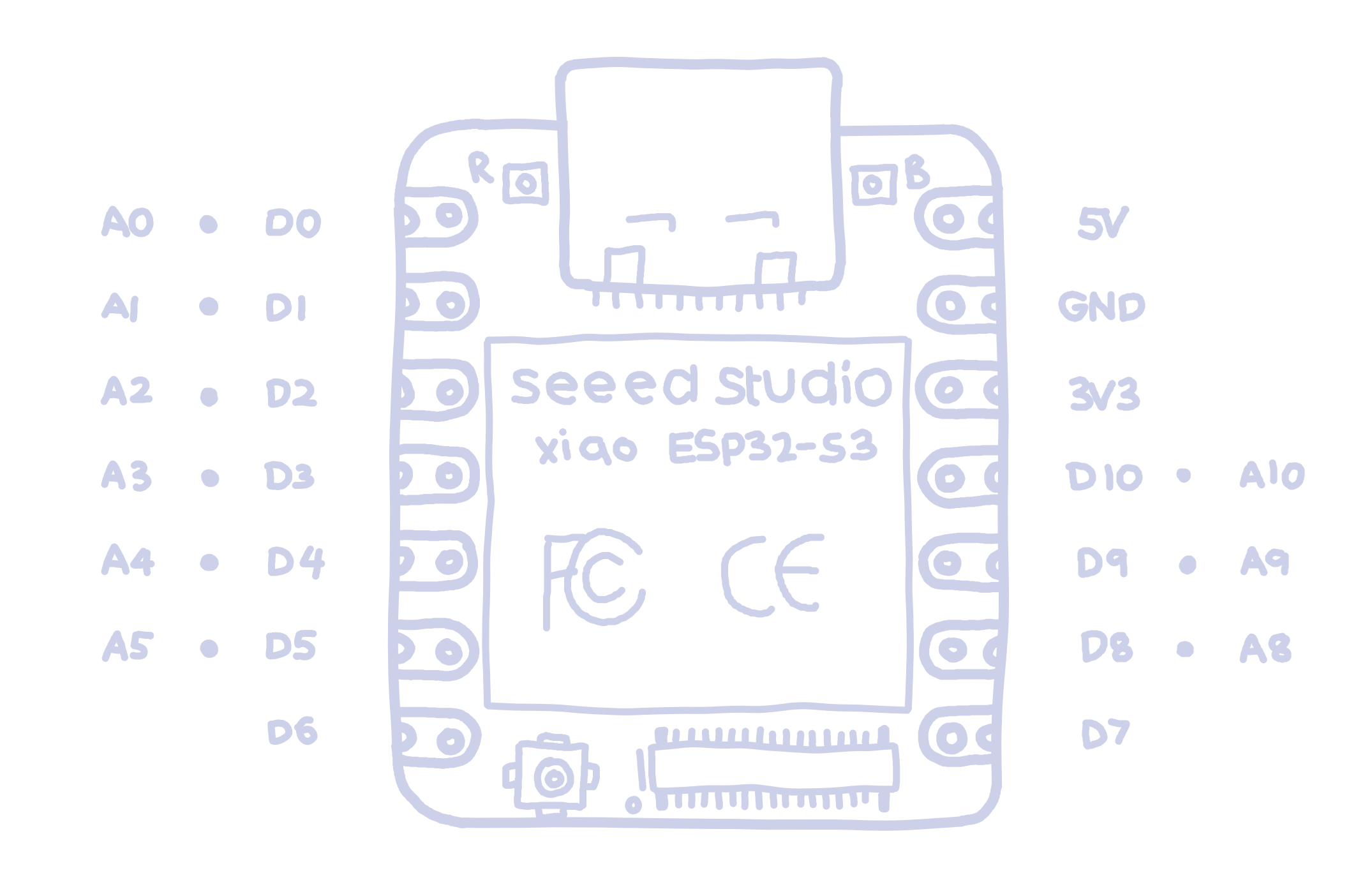

Solder to MCU

5 flex sensors

Upload Firmware

All the code and files can be found here:

You are free to use any IDE. I have used PlatformIO for this project. Here is my guide to setting up PlatformIO and downloading the files.

You will need to change the COM port in the plot.py. You c
